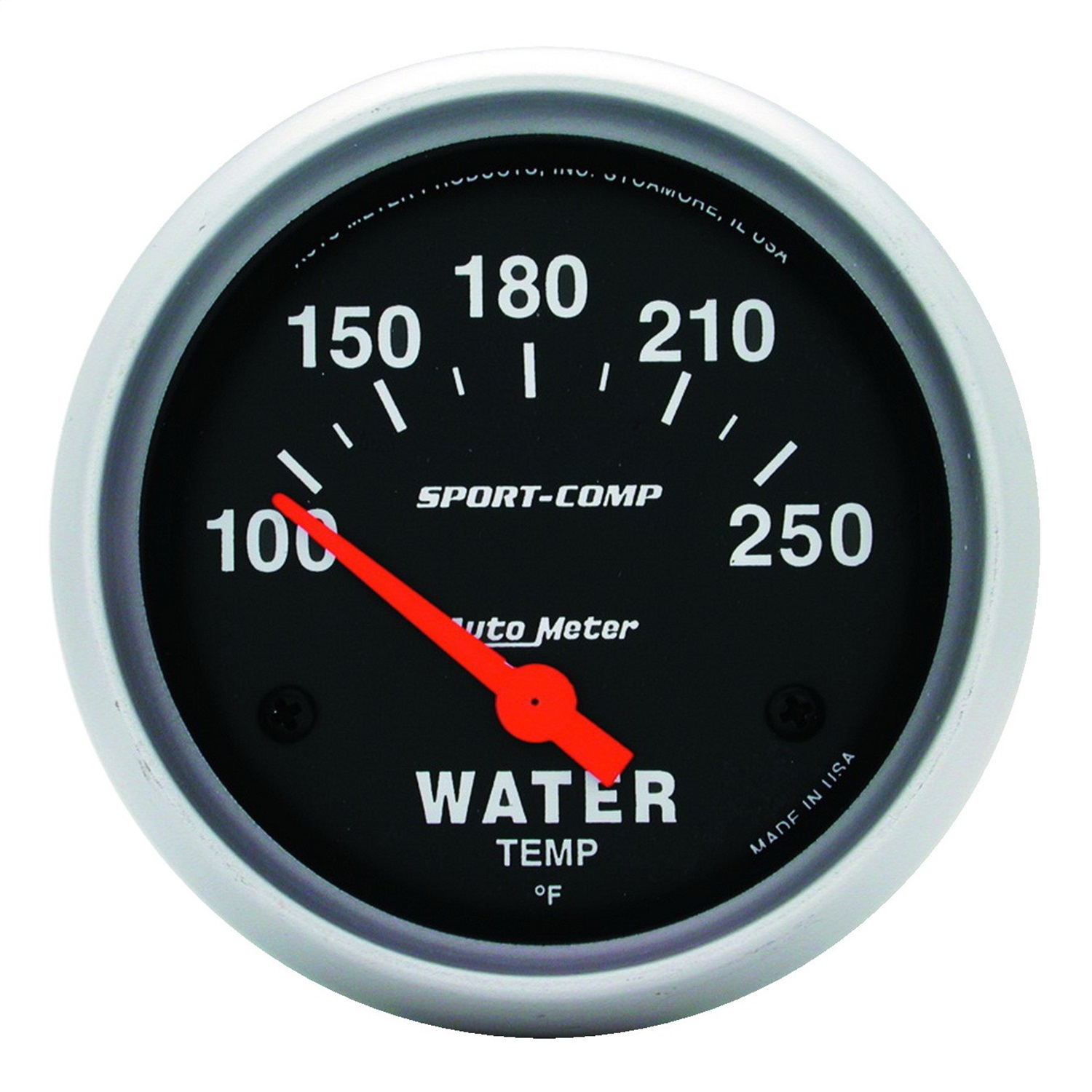

AutoMeter 3531 2-5/8″ WATER TEMPERATURE, 100-250 °F, SPORT-COMP
$135.73
2-5/8" WATER TEMPERATURE 100-250 F SPORT-COMP
1 in stock
Description
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender 3/8” and 1/2" NPT adapters bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Brand | AutoMeter |
| Part Number | 3531 |
| Part Type | Engine Coolant Temperature Gauge |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Cross Sell | 2277 2278 2280 2281 2282 2283 |
| Cup/Hole Size – Metric – MM | 66.7mm MM |
| Cup/Hole Size – Standard – IN | 2-5/8" IN |
| Dial Color | Black |
| Gauge Type | Water Temperature |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3211 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 3245 |
| Includes Sensor Unit | 2258 |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-7/8" IN |
| Outer Bezel Diameter – Standard | 2-5/8" IN |
| Pointer Color | Fluorescent Red |
| Range | 100-250 °F |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Engine Coolant Temperature Gauge |
| Manufacturer Part Number | 3531 |
| Country of Origin | US |
| Warranty | 12 Months |
