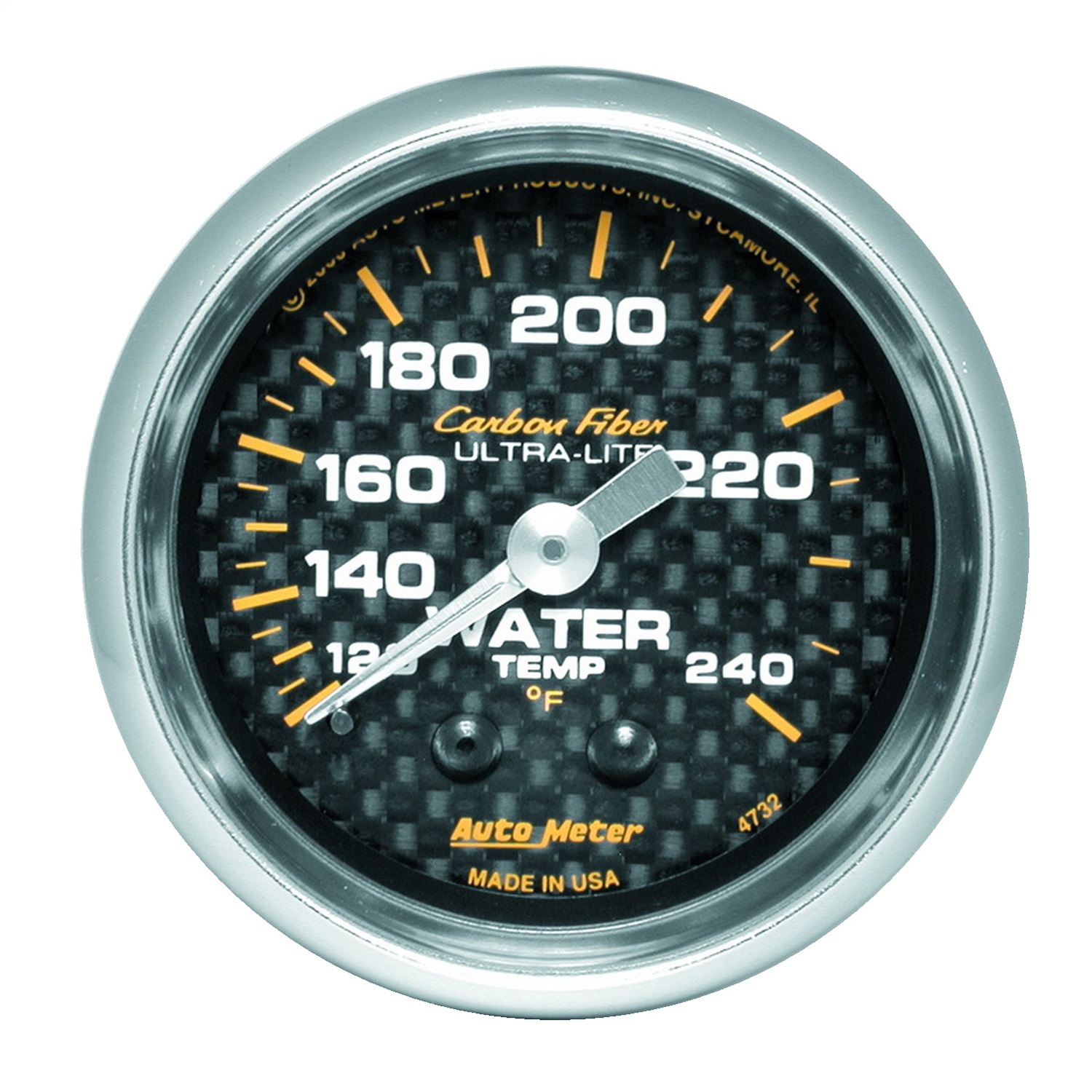

AutoMeter 4732 2-1/16″ WATER TEMPERATURE, 120-240 °F, CARBON FIBER
$194.98
2-1/16" WATER TEMPERATURE 120-240 F CARBON FIBER
1 in stock
Description
Engines don’t like high water temperatures Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate quickest responding water temperature gauge on the market. AutoMeter’s advanced bourdon tube meter movement provides unparalleled performance in the most demanding applications. A 6’ capillary tube and 1/2” NPT mounting nut are included.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation – compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/2" NPT adapter bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
Specifications
| Brand | AutoMeter |
| Part Number | 4732 |
| Part Type | Engine Coolant Temperature Gauge |
| Bezel Color | Bright Anodized |
| Bezel Style | Super Bezel |
| Cross Sell | 2283 2282 2275 2272 2273 2263 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Carbon Fiber |
| Gauge Type | Water Temperature |
| Includes Adapter/Fitting | 1/2"" NPT adapter/fitting. |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 2230 |
| Includes Tubing | 6 ft. Capillary Tube |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Silver |
| Range | 120-240 °F |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 6.25 × 6 × 6.25 in |
| Brand | AutoMeter |
| Part Type | Engine Coolant Temperature Gauge |
| Manufacturer Part Number | 4732 |
| Country of Origin | US |
| Warranty | 12 Months |
