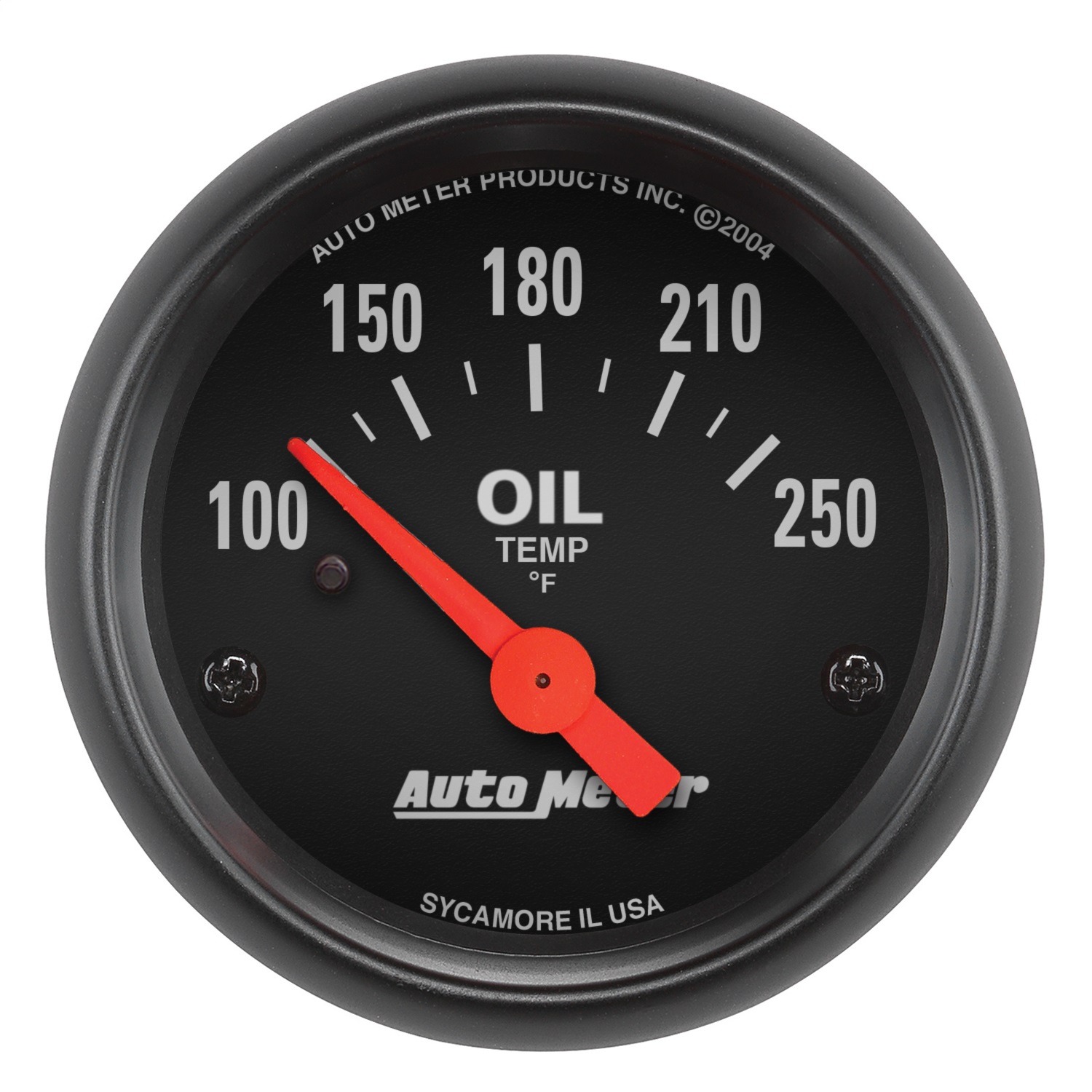

AutoMeter 2638 2-1/16″ OIL TEMPERATURE, 100-250 °F, Z-SERIES
$130.71
2-1/16" OIL TEMPERATURE 100-250 F Z-SERIES
1 in stock
Description
An engine running a high oil temperature will fail as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement a single wire 1/8” NPT temperature sender is included.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender 3/8” and 1/2" NPT adapters bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Brand | AutoMeter |
| Part Number | 2638 |
| Part Type | Engine Oil Temperature Gauge |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Cross Sell | 3288 3286 3284 2268 2266 2267 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Black |
| Gauge Type | Oil Temperature |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Fluorescent Red |
| Range | 100-250 °F |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.66 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Engine Oil Temperature Gauge |
| Manufacturer Part Number | 2638 |
| Country of Origin | US |
| Warranty | 12 Months |
