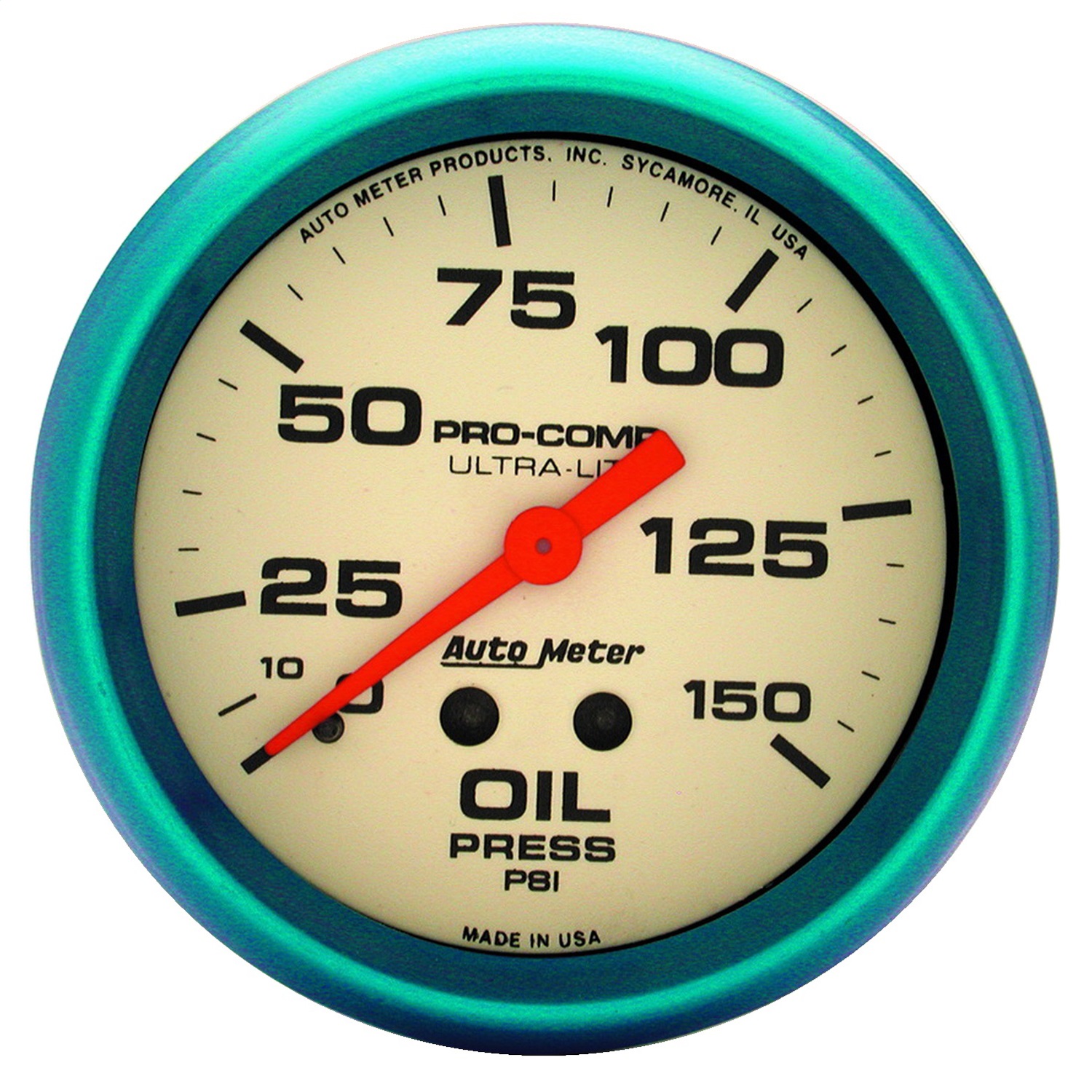

AutoMeter 4523 2-5/8″ OIL PRESSURE, 0-150 PSI, ULTRA-NITE
$176.25
2-5/8" OIL PRESSURE 0-150 PSI ULTRA-NITE
3 in stock
Description
The life blood of your engine a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance as well as your peace of mind. AutoMeter’s Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. A simple 1/8” NPT connection makes installation easy. Optional braided stainless line kits are available separately.
Features
- Luminescent dials glow green at night for dimly lit tracks when no battery is available to light conventional instruments
- For racing use only – Not intended for street applications
- No electrical system required for gauge operation – compatible with every street or race vehicle
- AutoMeter’s race proven mechanical instruments provide trusted accuracy and durability in the harshest environments while being simple to install
Specifications
| Brand | AutoMeter |
| Part Number | 4523 |
| Part Type | Engine Oil Pressure Gauge |
| Bezel Color | Blue |
| Bezel Style | Super Bezel |
| Cross Sell | 3224 3227 3228 3229 3226 3278 |
| Cup/Hole Size – Metric – MM | 66.7mm MM |
| Cup/Hole Size – Standard – IN | 2-5/8" IN |
| Dial Color | White |
| Gauge Type | Oil Pressure |
| Includes Mounting Hardware | 3245 |
| Lens Style | Flat Clear |
| Lighting Type | Glow in the dark dial face |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-7/8" IN |
| Outer Bezel Diameter – Standard | 2-5/8" IN |
| Pointer Color | Fluorescent Red |
| Range | 0-150 PSI |
| Related Item | BEX-5000 2163 EP-800 0424XL 0447LXL |
| Series | ULTRA-NITE |
| Size – Metric – MM | 66.7mm MM |
| Size – Standard – IN | 2-5/8" IN |
| Upsell | 3224 3227 3228 3229 3226 3278 |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Engine Oil Pressure Gauge |
| Manufacturer Part Number | 4523 |
| Country of Origin | US |
| Warranty | 12 Months |
