Derale 14210 Transmission Oil Pan – Transmission Pan

Description

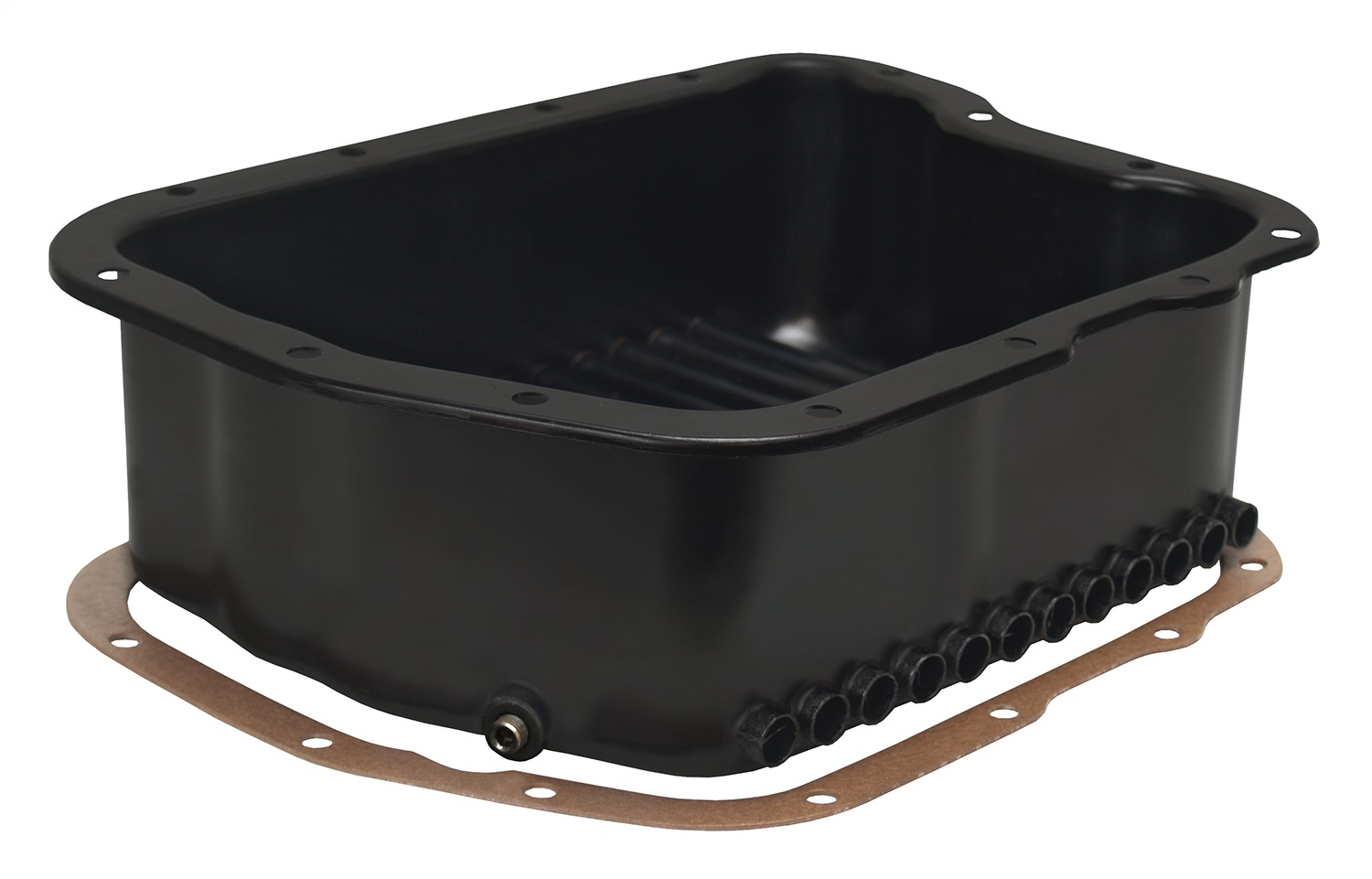

Derale's Transmission Cooling Pan #14210 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Chryslers popular Torqueflight automatic family including the A727 later A518 (46RH 46RE) and A618 (47RH 47RE 48RE) models and several model derivatives this pan features brazed turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Features

• Transmission Cooling Pan Reduces Fluid Temps up to 50°F Increase Capacity

Specifications

Vehicle Fitment

Dodge A518 (46RH; 46RE); 618 (47RH; 47RE; 48RE) & 727

Installation Instructions (PDF)
