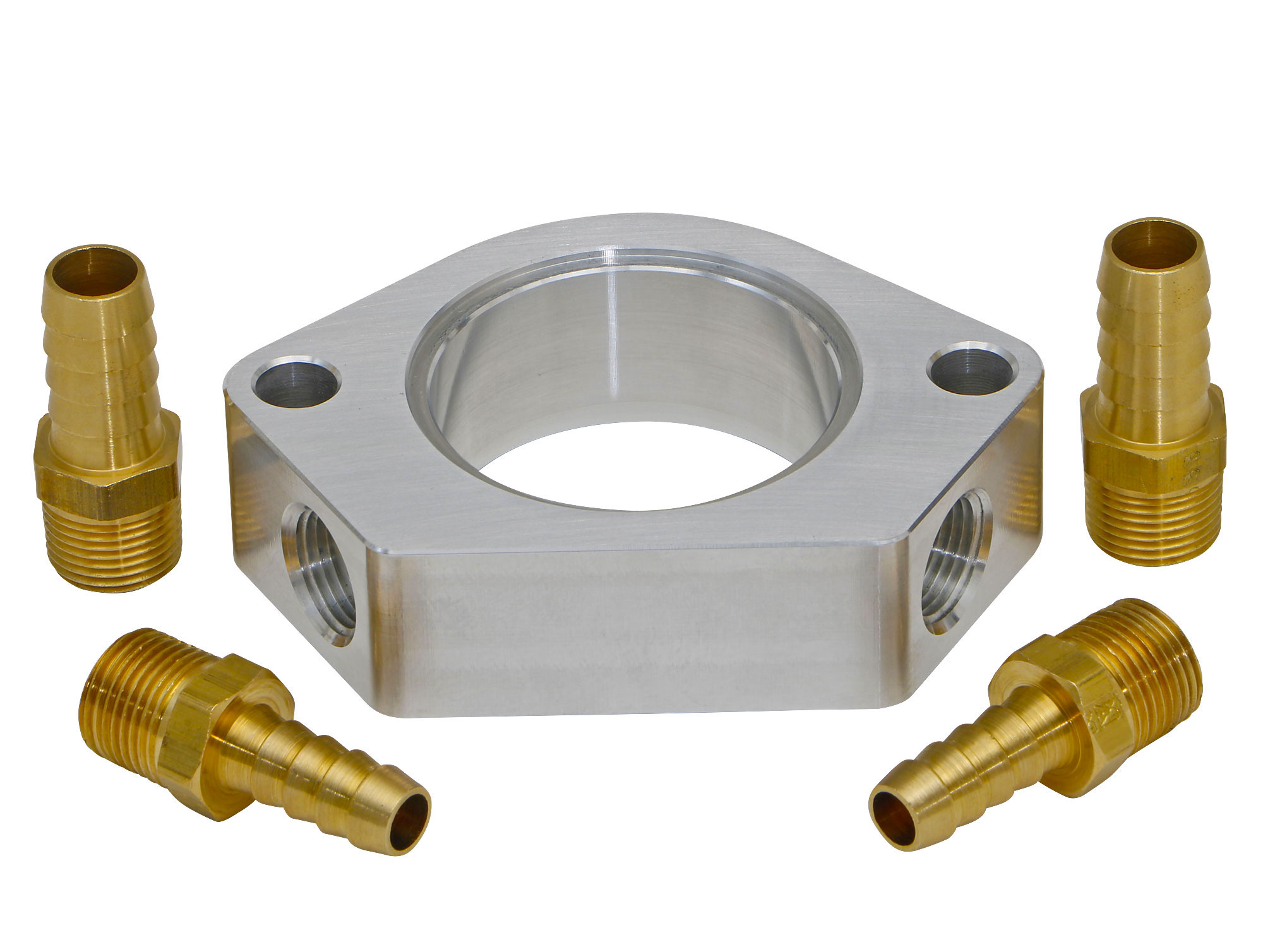

Trans-Dapt Performance 6104 1 IN. BILLET WATER NECK RISER WITH 3/8 IN. NPT PORTS
$106.99
1 in. Tall Billet Aluminum SB and BB Chevy Thermostat Housing Riser with Dual 3/8 in. NPT Ports; Includes 1/4 in. and 3/8 in. Barbed Fittings and O-ring.
1 in stock
Description
<p>Trans-Dapt Performance Products billet aluminum thermostat (water neck) risers can serve multiple functions. They are an easy way to create easy (easier) access to manifold or thermostat housing ports. They also facilitate the installation of a water temp sending unit temperature gauge or for adding lines to your intake manifold. Lastly they are ideal for situations when the vehicle's radiator is positioned higher than the intake manifold.</p><p> Trans-Dapt CNC machines these risers from durable T6061 aluminum and clear anodizes them for longlasting looks. A captured o-ring is used to ensure a leakproof installation and a recessed thermostat groove to allow the thermostat to sit flush with the sealing flange.</p><p>Each unit has two 3/8 in. NPT ports and includes a pair of both 1/4 in. and 3/8 in. hosed barb fittings. 1 in. and 2in. models are available.</p>
Specifications
| Brand | Trans-Dapt Performance |
| Part Number | 6104 |
| Part Type | Engine Coolant Thermostat Housing Spacer |
| Bolt Hole Quantity | 2 |
| Bolts/Studs Included | No |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Contents | Billet Aluminum Riser O-ring 1/4 and 3/8 in. brass hose fittings (1 pair each) |
| Engine | CHEVY SB/BB V8 (early '55-64) |
| Fastener(s) Included | No |
| Finish | Clear Anodized |
| Finish Type | Clear Anodized |
| Fitting Material | Brass |
| Fitting Quantity | 4 |
| Fitting Thread | 3/8 in.-16 |
| Gasket Or Seal Included | Yes |
| Height | 1 IN. TALL |
| Hose Connection Type | Push Lock |
| Hose ID | 1/4 in. or 3/8 in. |
| Installation Hardware Included | No |
| Material | Aluminum |
| Mount Hole Quantity | 2 |
| Mounting Hardware Included | No |
| Neck Angle | N/A |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 3.25 × 4.75 in |
| Brand | Trans-Dapt Performance |
| Part Type | Engine Coolant Thermostat Housing Spacer |
| Manufacturer Part Number | 6104 |
| Country of Origin | US |
| Warranty | Limited One Year Warranty from the date of purchase |
