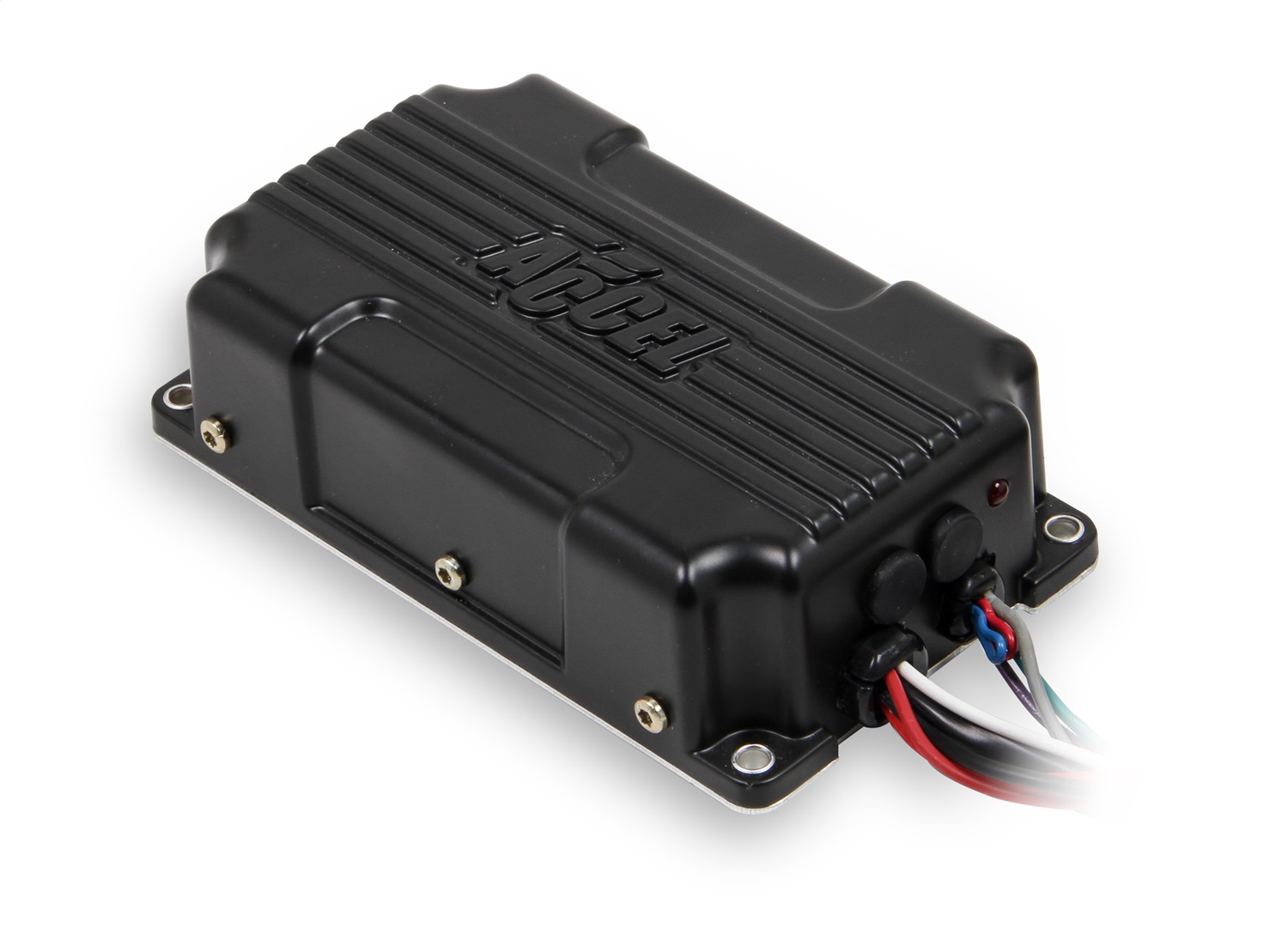

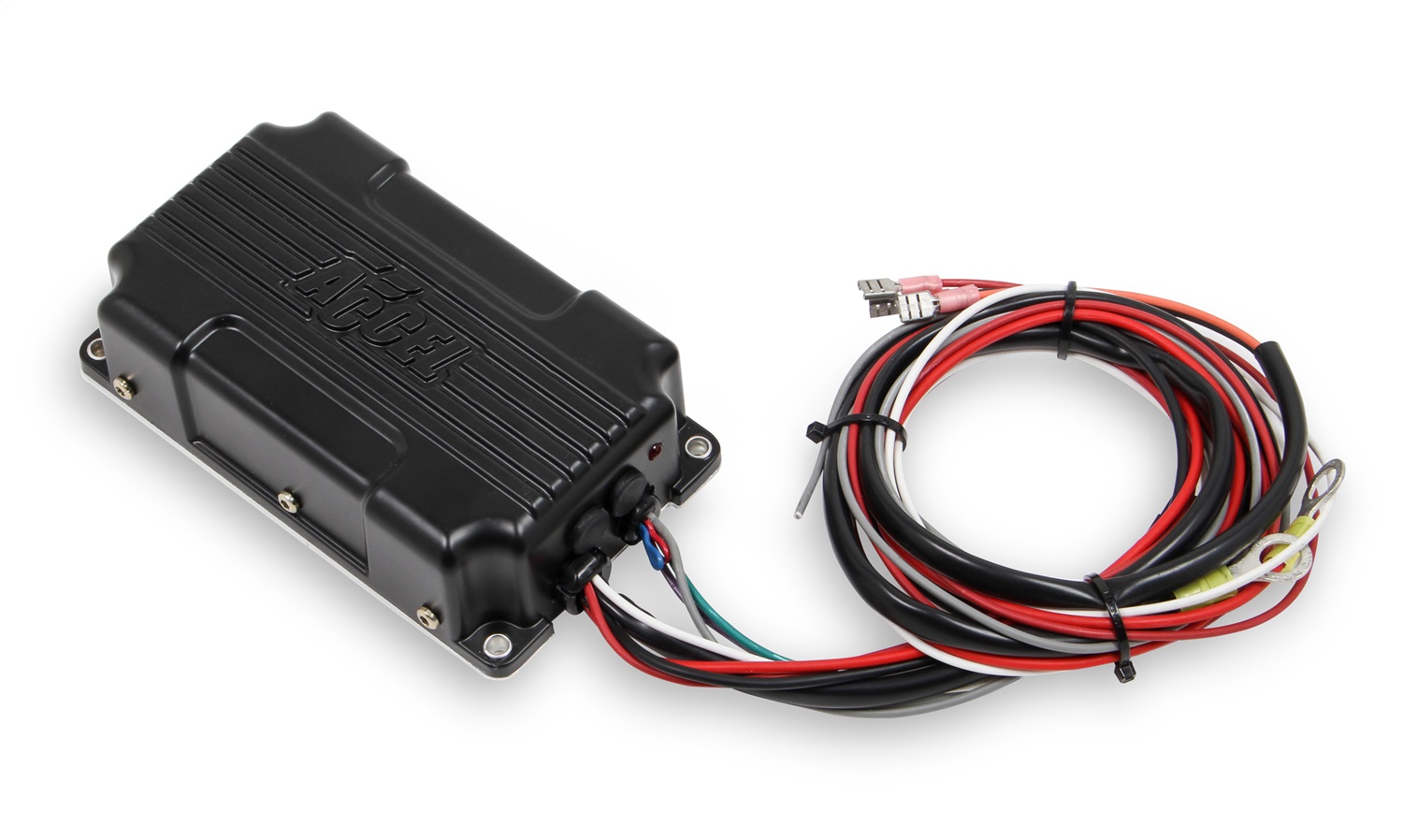

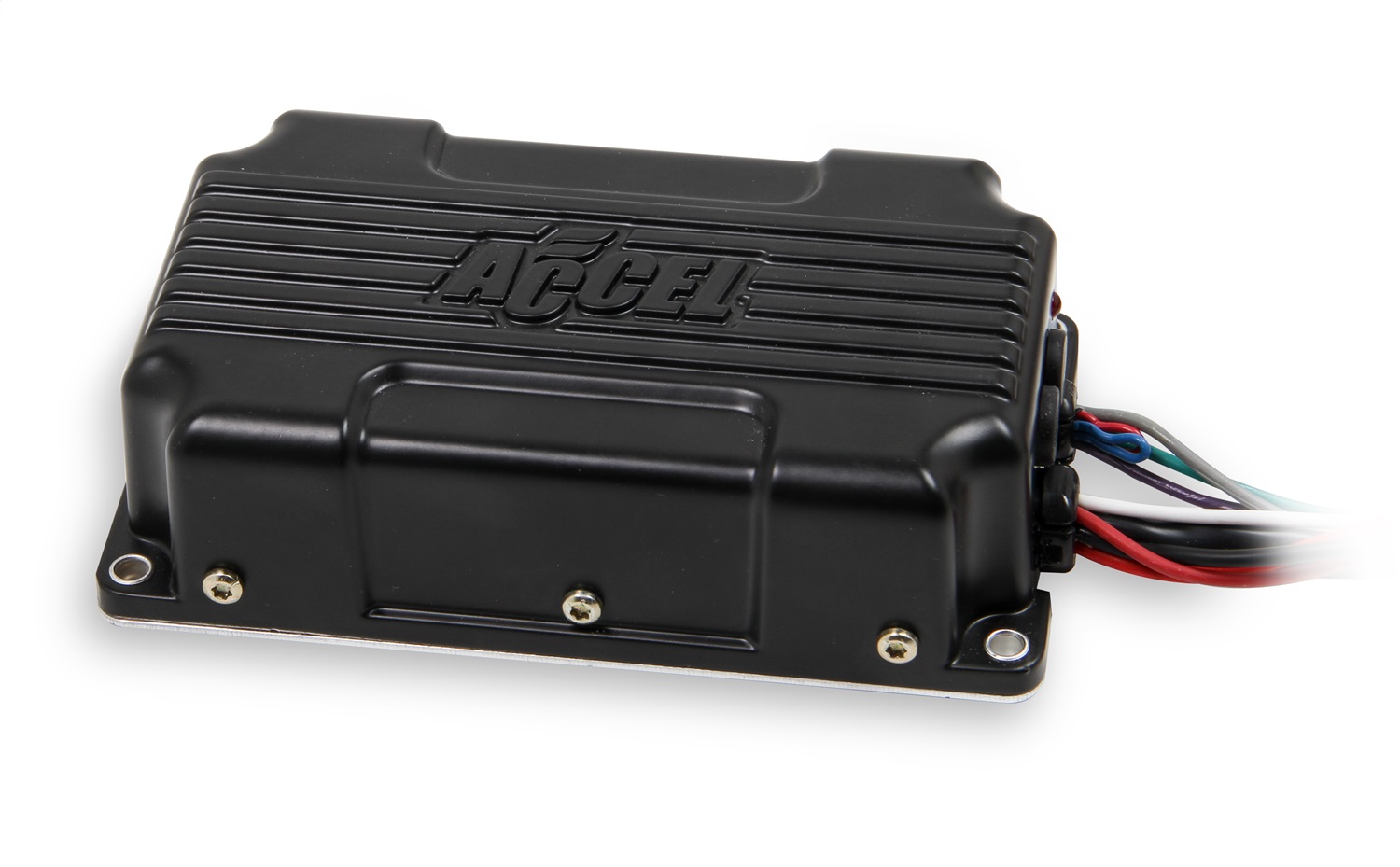

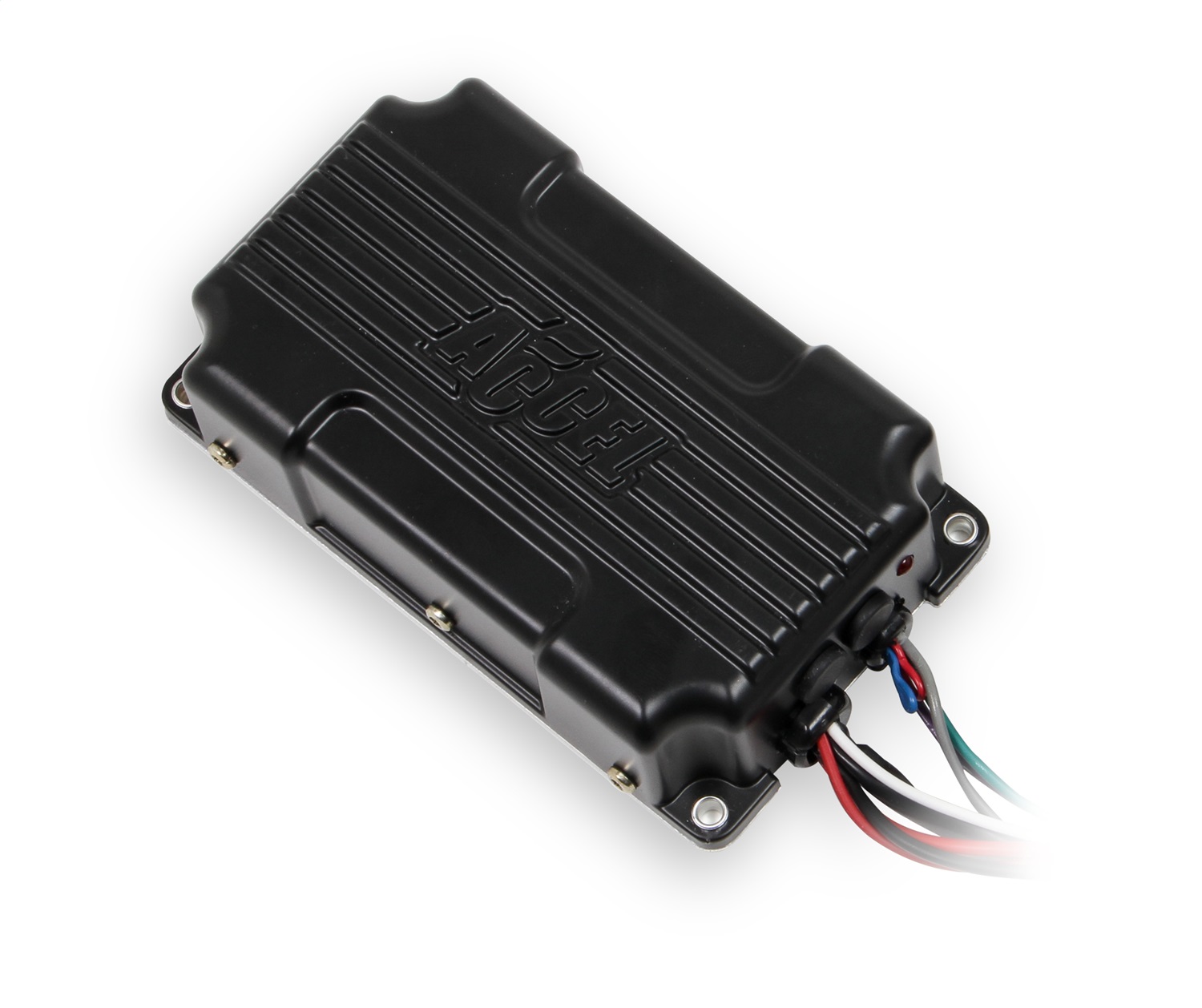

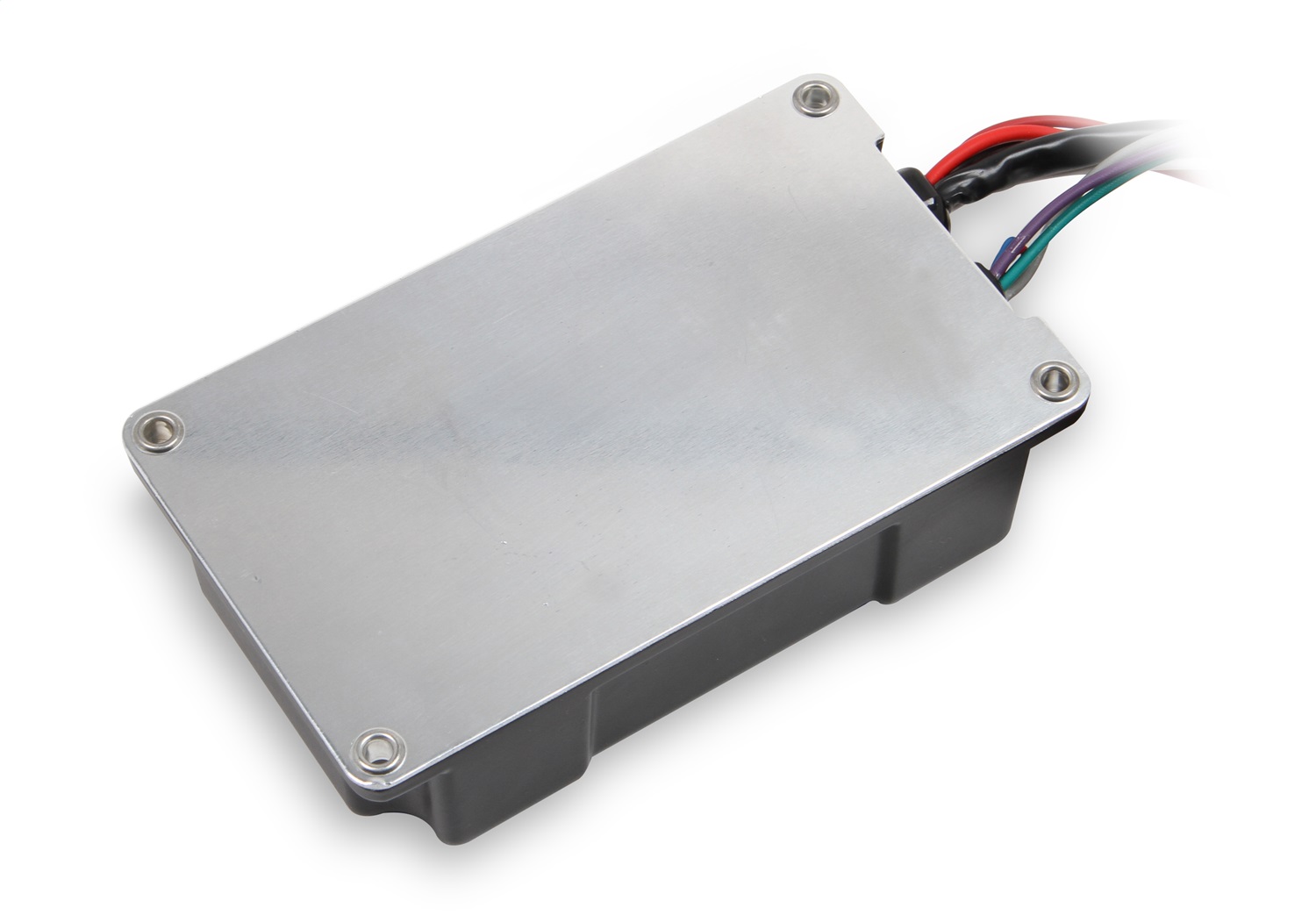

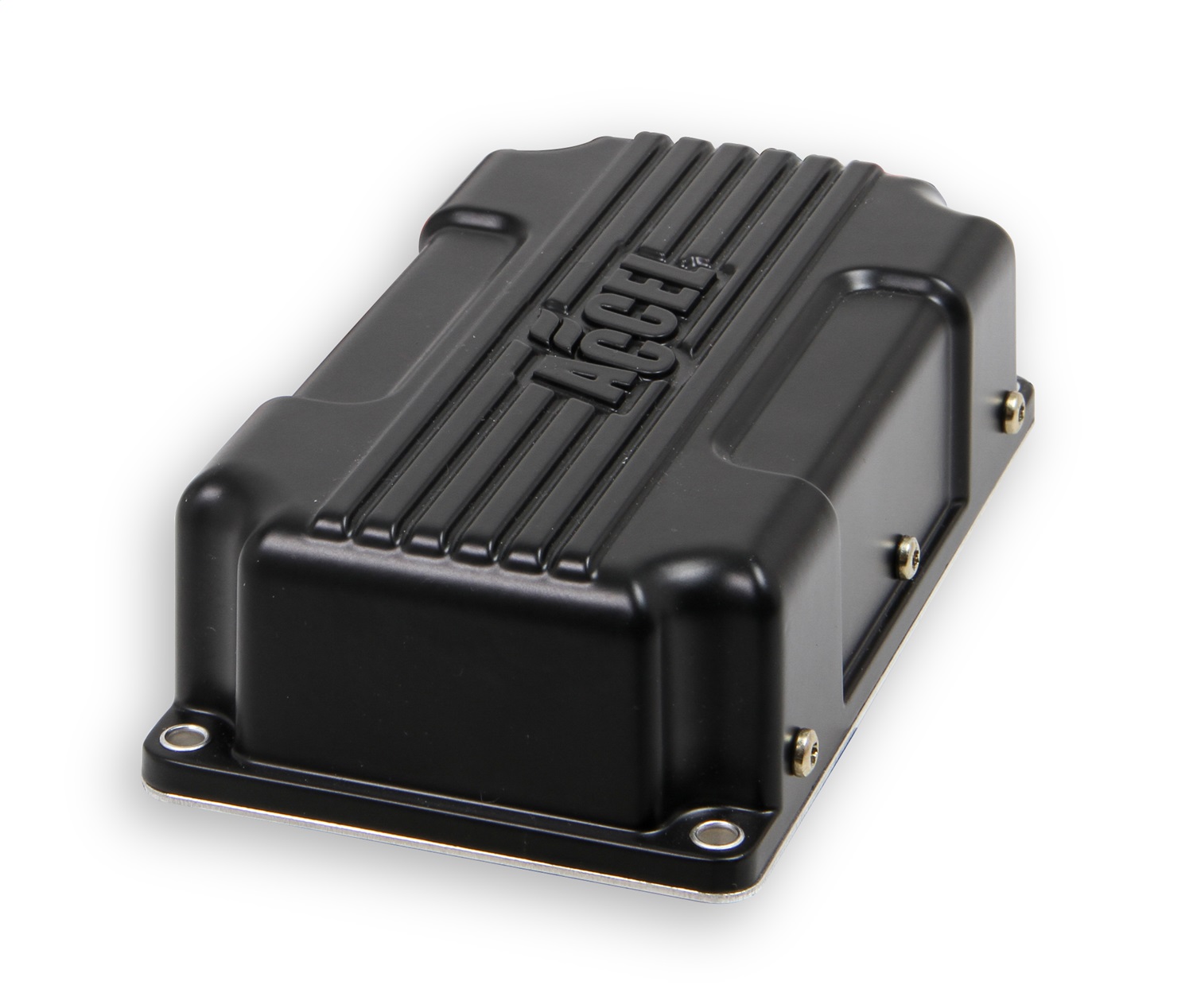

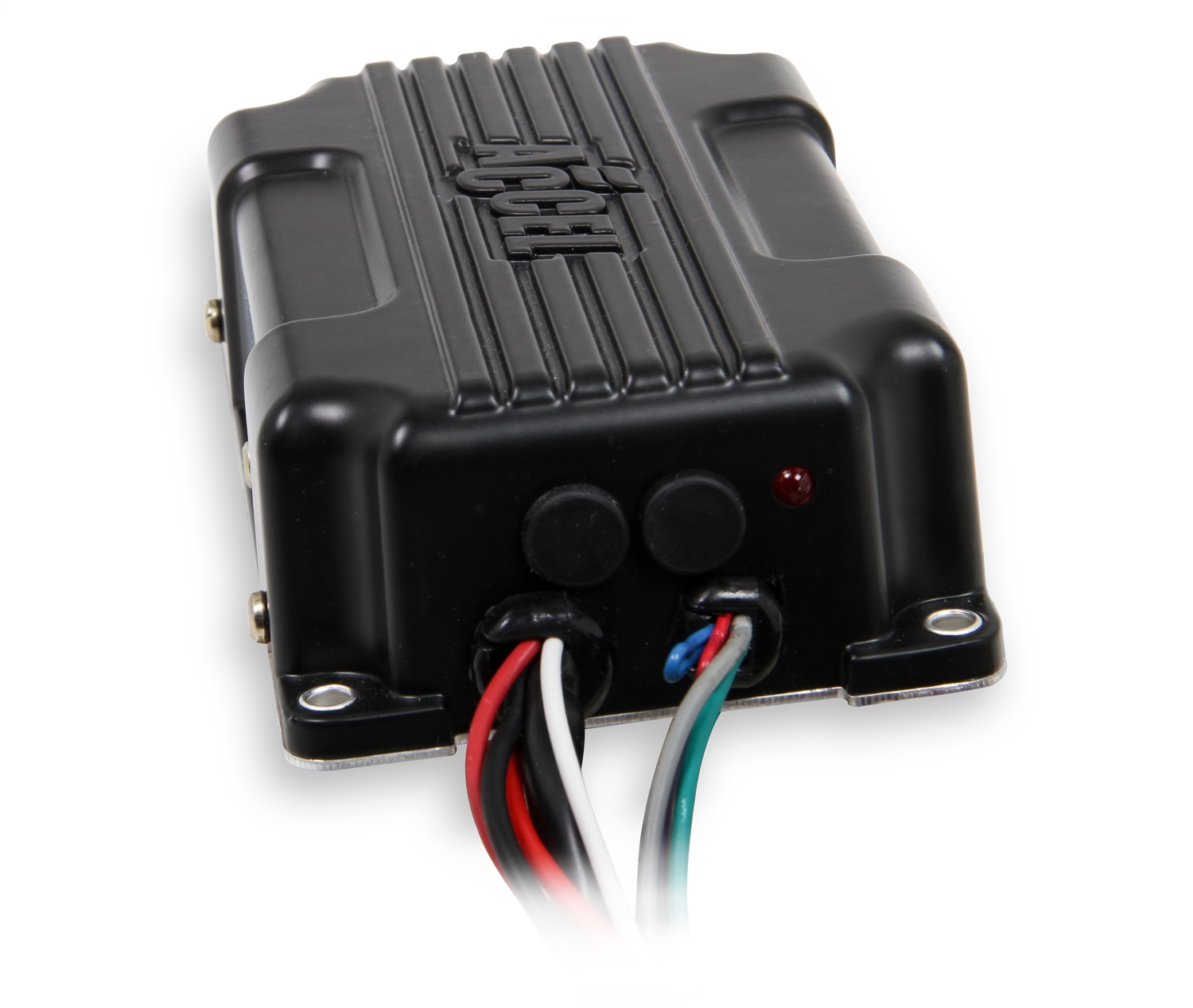

SuperBox Capacitive Discharge Ignition System

Description

The ACCEL SuperBox Capacitive Discharge Ignition System is one of the best ignition values on the market, a perfect blend of value and performance. When the engine is running at low rpm, this modern capacitive-discharge ignition fires a series of multiple sparks that last for 20 degrees of crankshaft rotation, ensuring better combustion of the air/fuel mixture and creating instant throttle response and a smoother idle. The ACCEL SuperBox is built around a durable cast-aluminum housing, can be set for 4-, 6- or 8-cylinder applications, and easily connects to points, amplifiers, and magnetic-pickup distributors. An adjustable rev-limiter protects the engine in the event of driveline failure or the occasional missed shift, and it’s fully adjustable with rotary dials in 100-rpm increments.

SuperBox Capacitive Discharge Ignition System; Primary 435 Volts; Secondary 43000 Volts; 15000 RPM Requires 10-18 Volts/Neg. Ground; Draws 0.7 Amps Per 1000 RPM; 95mJ Per Spark;
