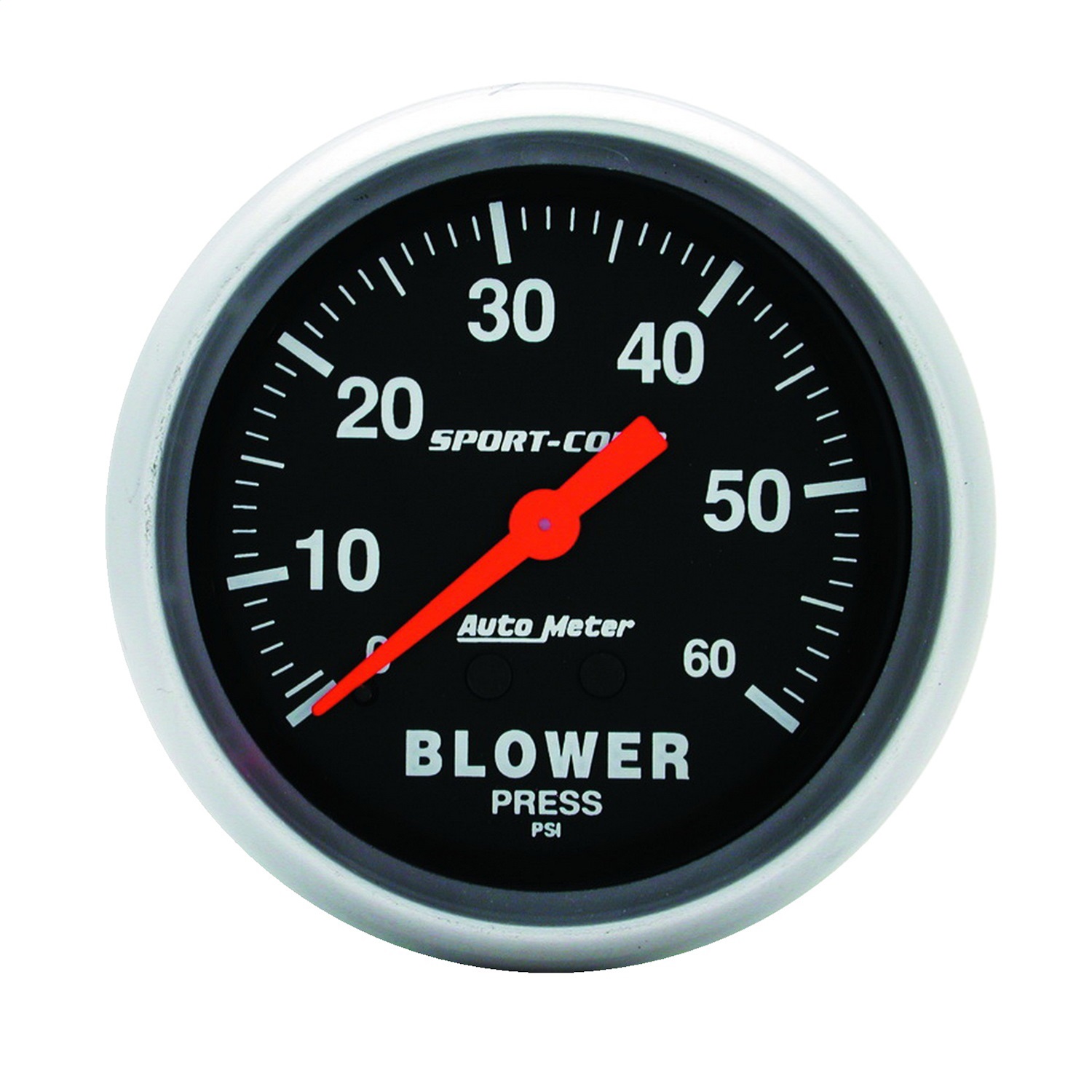

AutoMeter 3402 2-5/8″ BLOWER PRESSURE, 0-60 PSI, SPORT-COMP
$118.55
2-5/8" BLOWER PRESSURE 0-60 PSI SPORT-COMP
1 in stock
Description
Know your exact blower pressure with AutoMeter’s ultra-precise bourdon tube meter movement the standard for accuracy and durability in the industry for generations. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. An optional blower memory kit provides a one way check valve for peak recall after your run.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation – compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line 1/8” NPT compression fittings 1/4” NPT adapter bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
Specifications
| Brand | AutoMeter |
| Part Number | 3402 |
| Part Type | Boost Gauge |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Cross Sell | 3224 3227 3228 3229 3226 |
| Cup/Hole Size – Metric – MM | 66.7mm MM |
| Cup/Hole Size – Standard – IN | 2-5/8" IN |
| Dial Color | Black |
| Gauge Type | Blower Pressure |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting 1/8" NPT Female to 1/8" compression fitting 1/8" NPT to 1/4" NPT bushing T – Fitting |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 3245 |
| Includes Tubing | 10 ft. nylon tubing |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-7/8" IN |
| Outer Bezel Diameter – Standard | 2-5/8" IN |
| Pointer Color | Fluorescent Red |
| Range | 0-60 PSI |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.83 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Boost Gauge |
| Manufacturer Part Number | 3402 |
| Country of Origin | US |
| Warranty | 12 Months |
