Quick Time RM-6023PB BBC/SBC/LT1 Engines To T56 LS-1 Trans. Mech. Fork – 6.1 SFI

Quick Time RM-6023PB BBC/SBC/LT1 Engines To T56 LS-1 Trans. Mech. Fork – 6.1 SFI

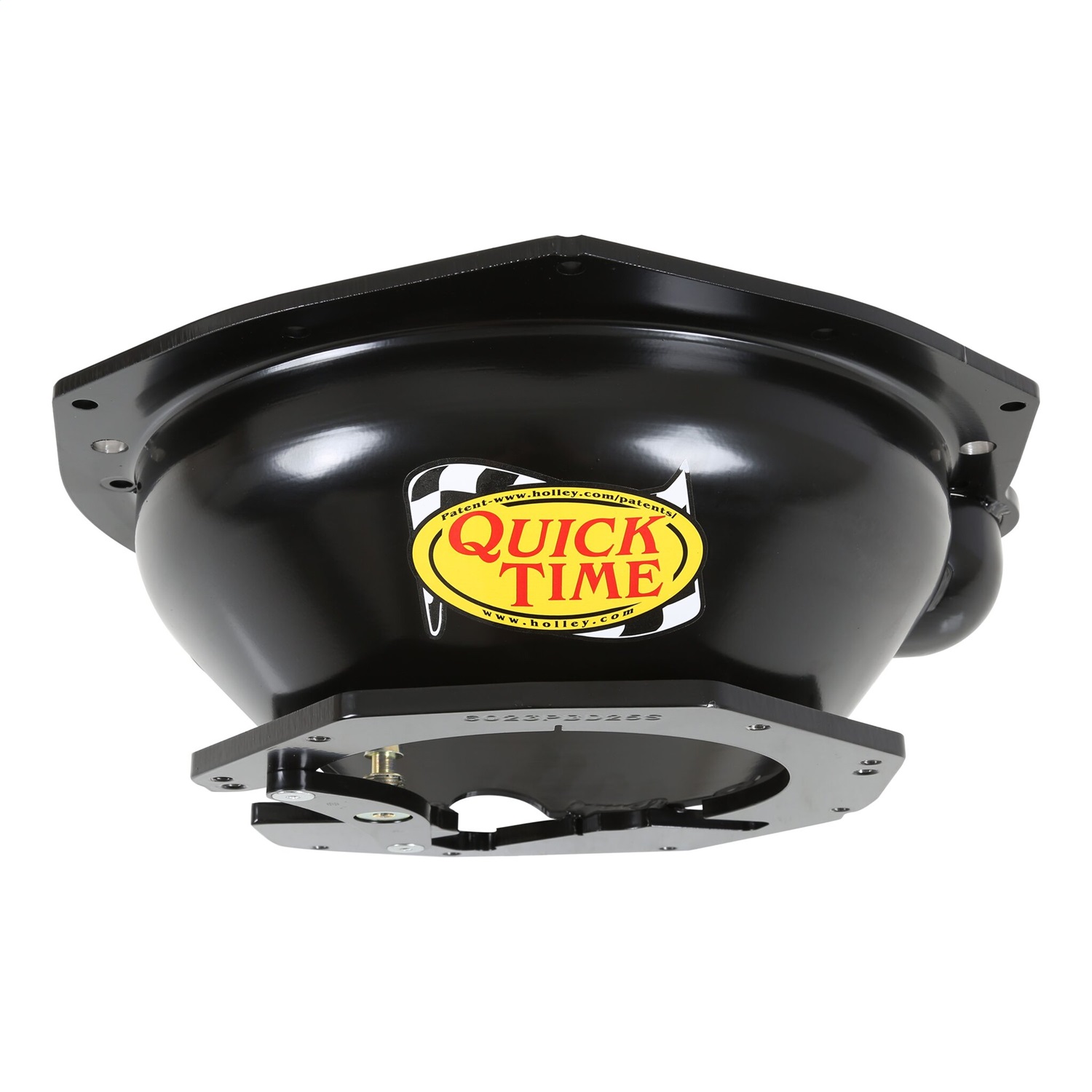

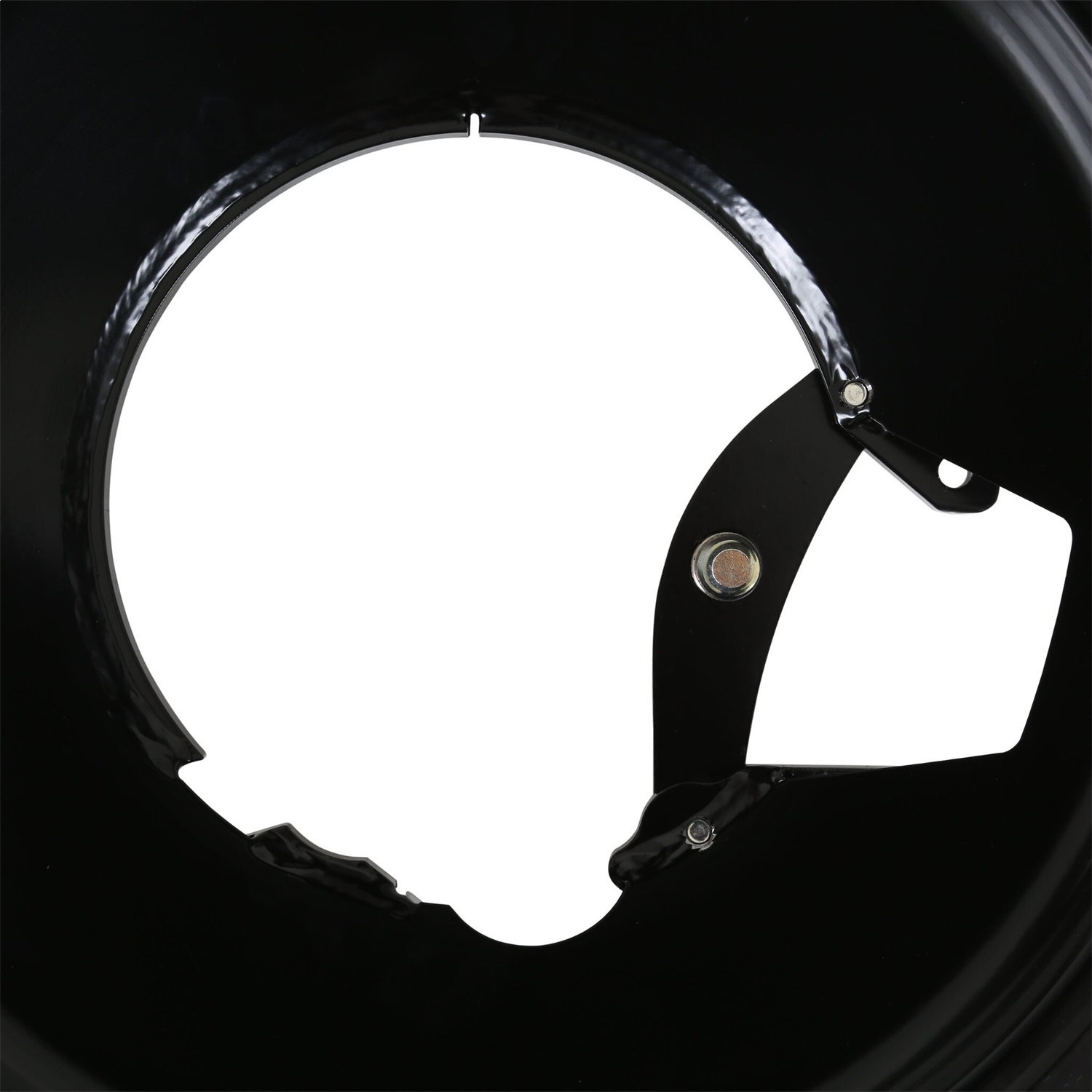

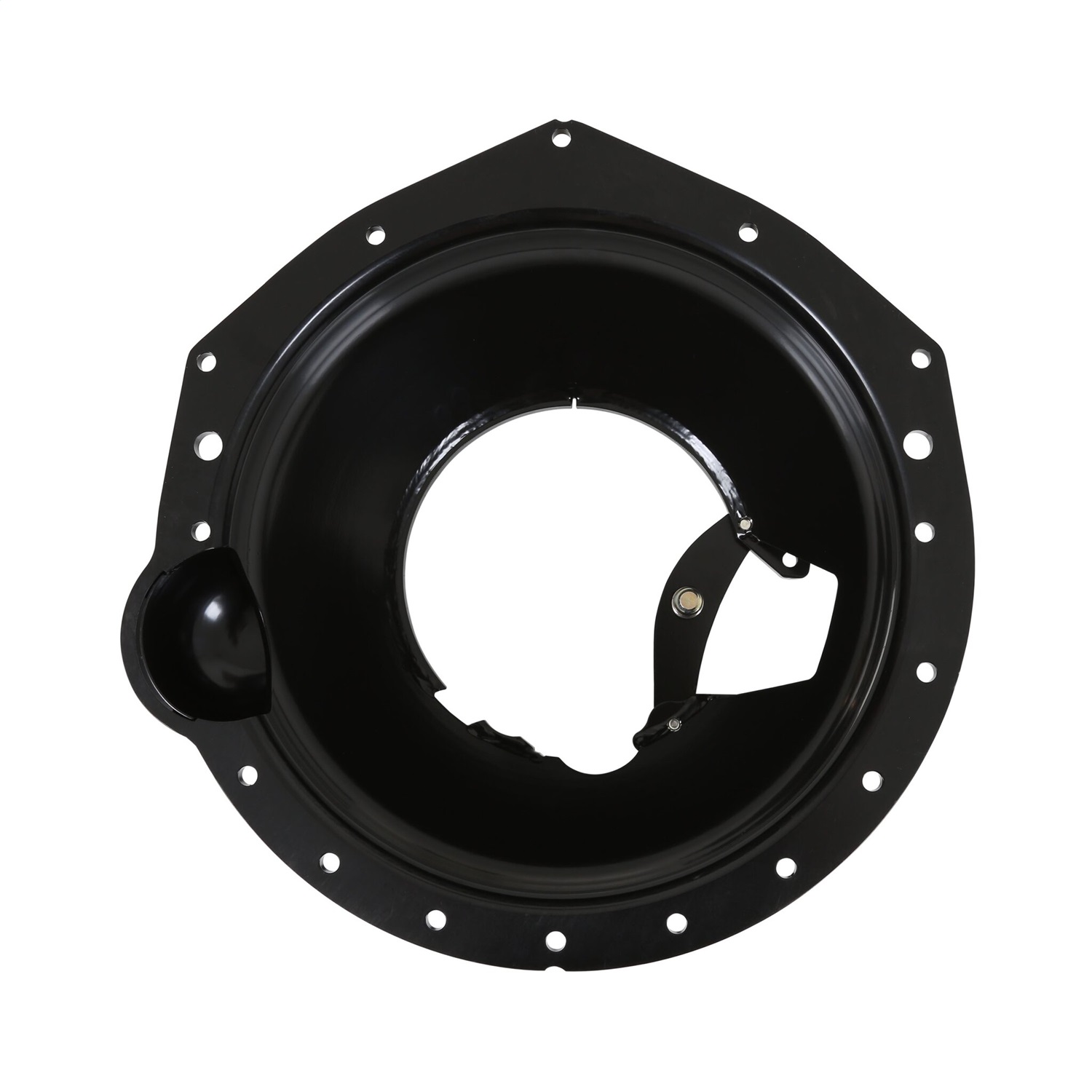

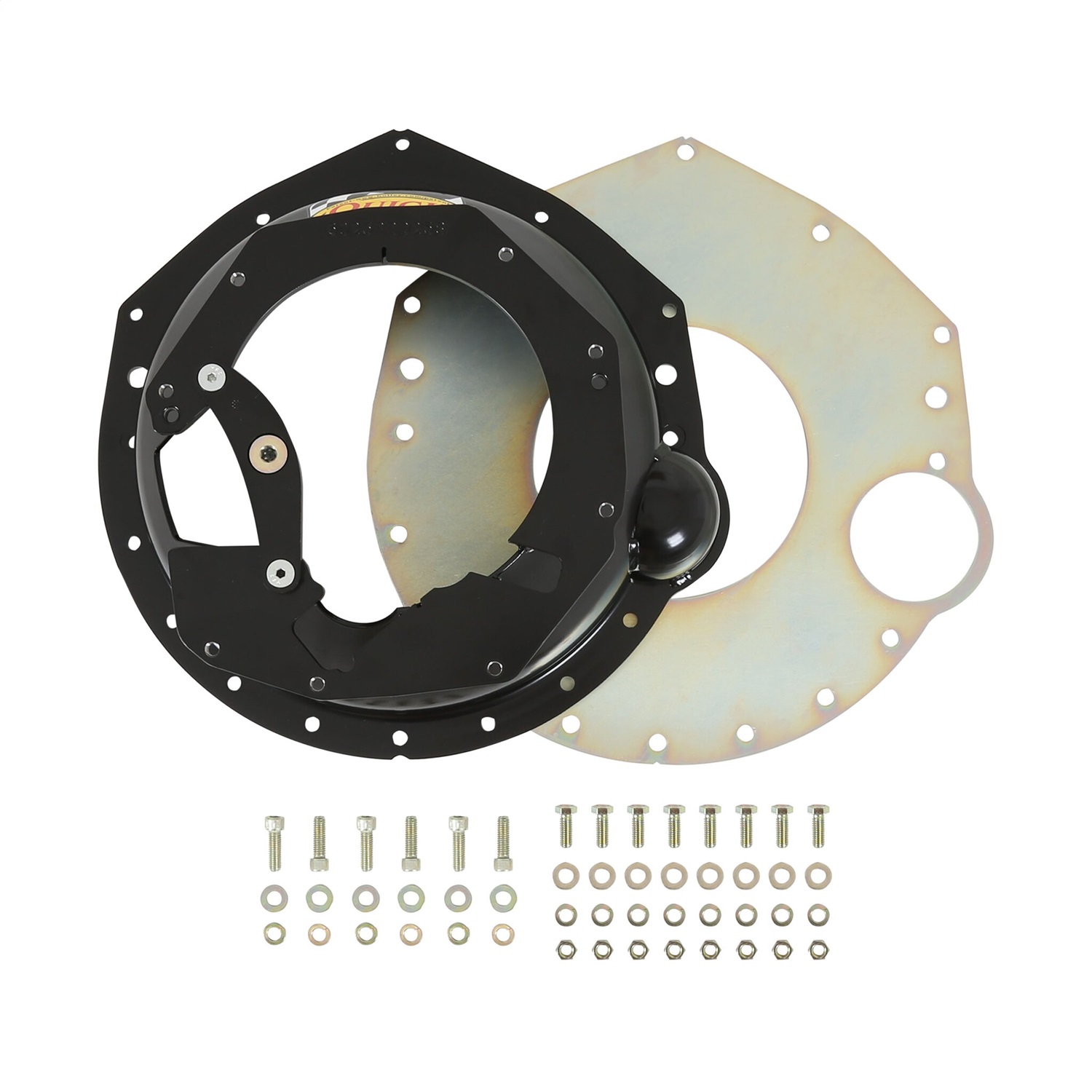

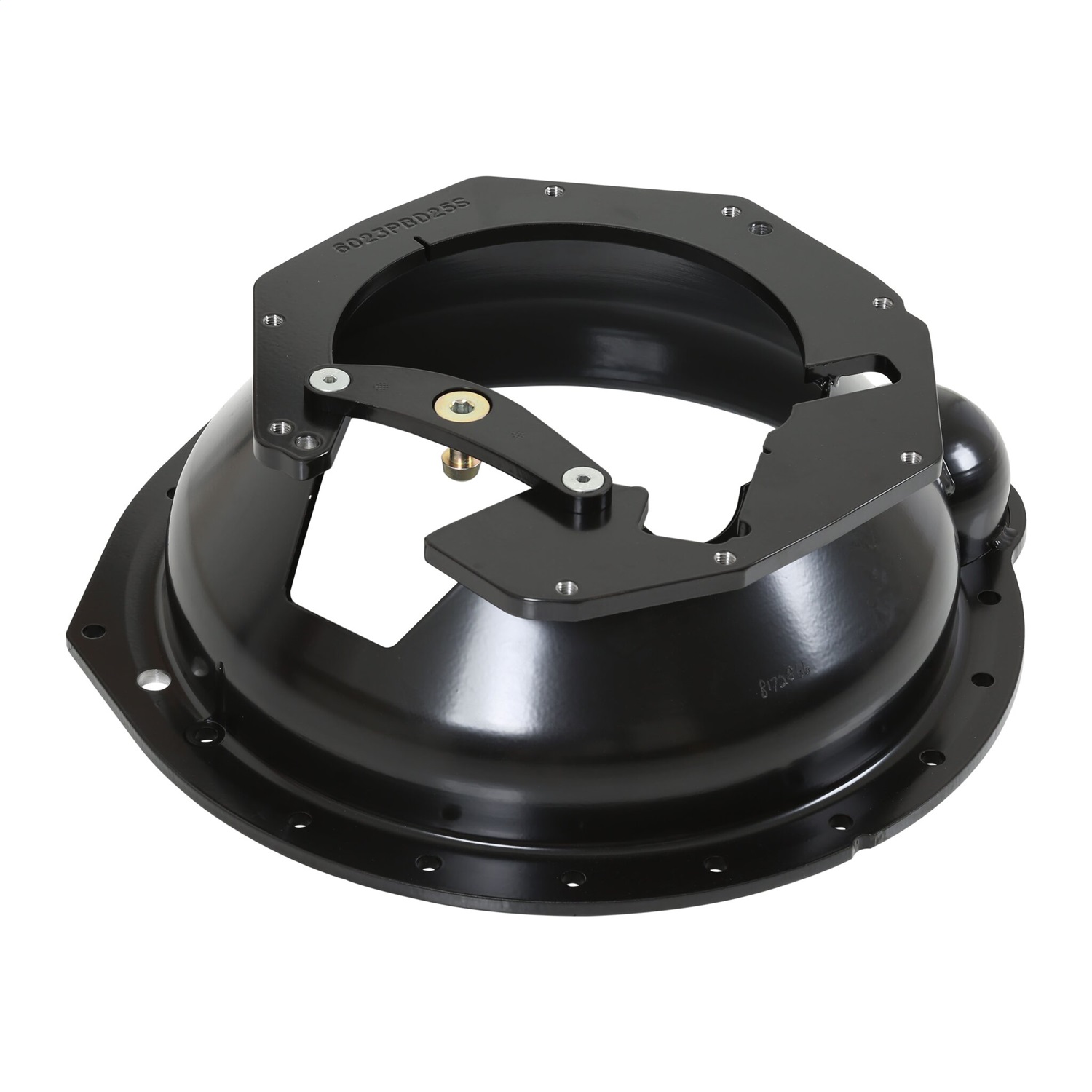

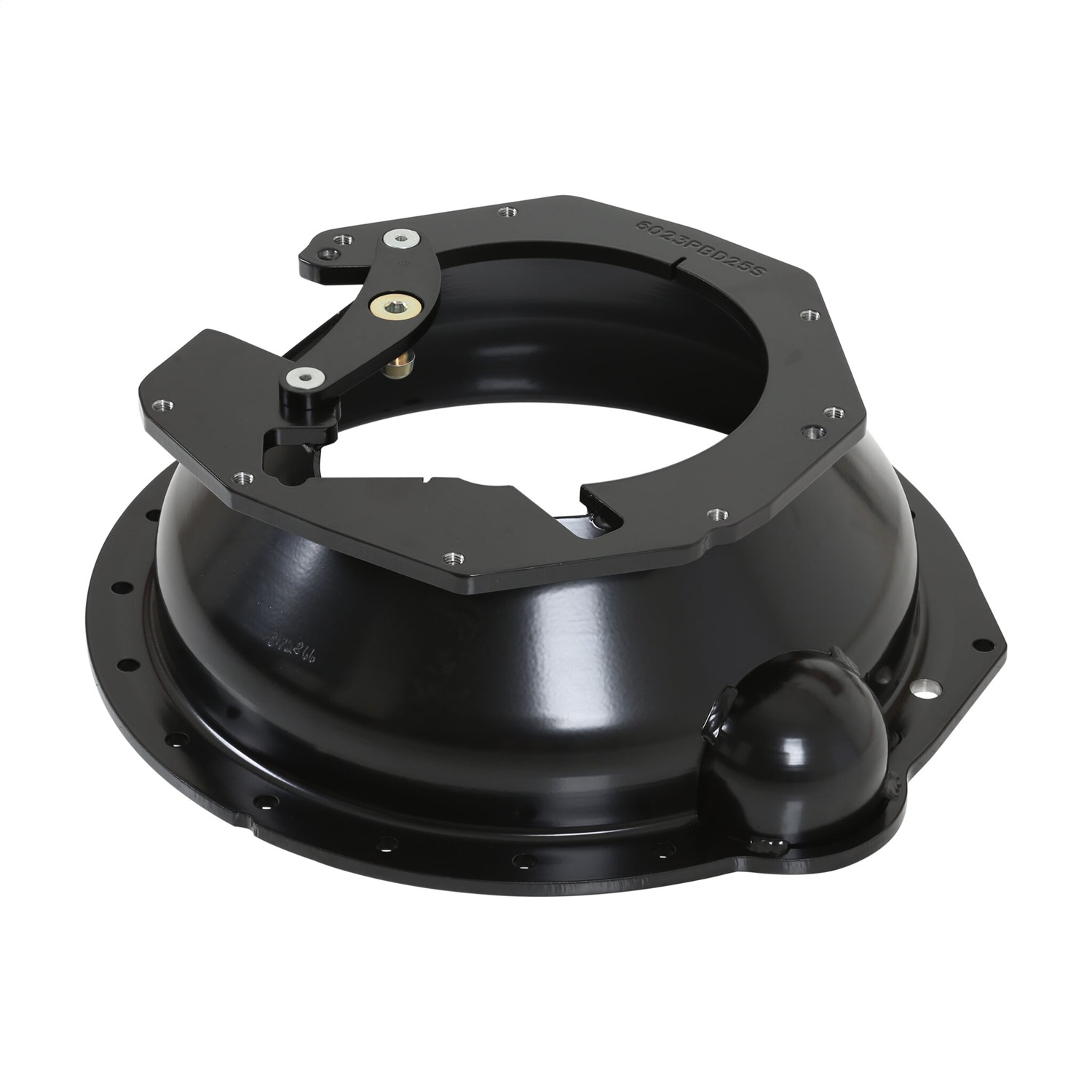

The Quick Time RM-6023PB bellhousing connects Chevy small block and big block engines to Chevy T56 LS-1 transmissions. Included with this is the pivot ball required for clutch fork attachment. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features

• Patent On 16 Points Of Bellhousing Design And Process
• Standard Left Hand Fork Or Hyd. Bearing
• Fits Up To A 168 Tooth Flywheel And 11 in. Clutch
• Utilizes OEM Style Starter Attachment / Placement
• Transmission Bore T56 Chevy
• Bellhousing Depth 5.950 in.
• Weight 22 lbs.
• Grade 8 Fasteners
• Made In The USA

Specifications

Condition: Brand new in the manufacturer box. Ships free from our Sacramento, California warehouse.
