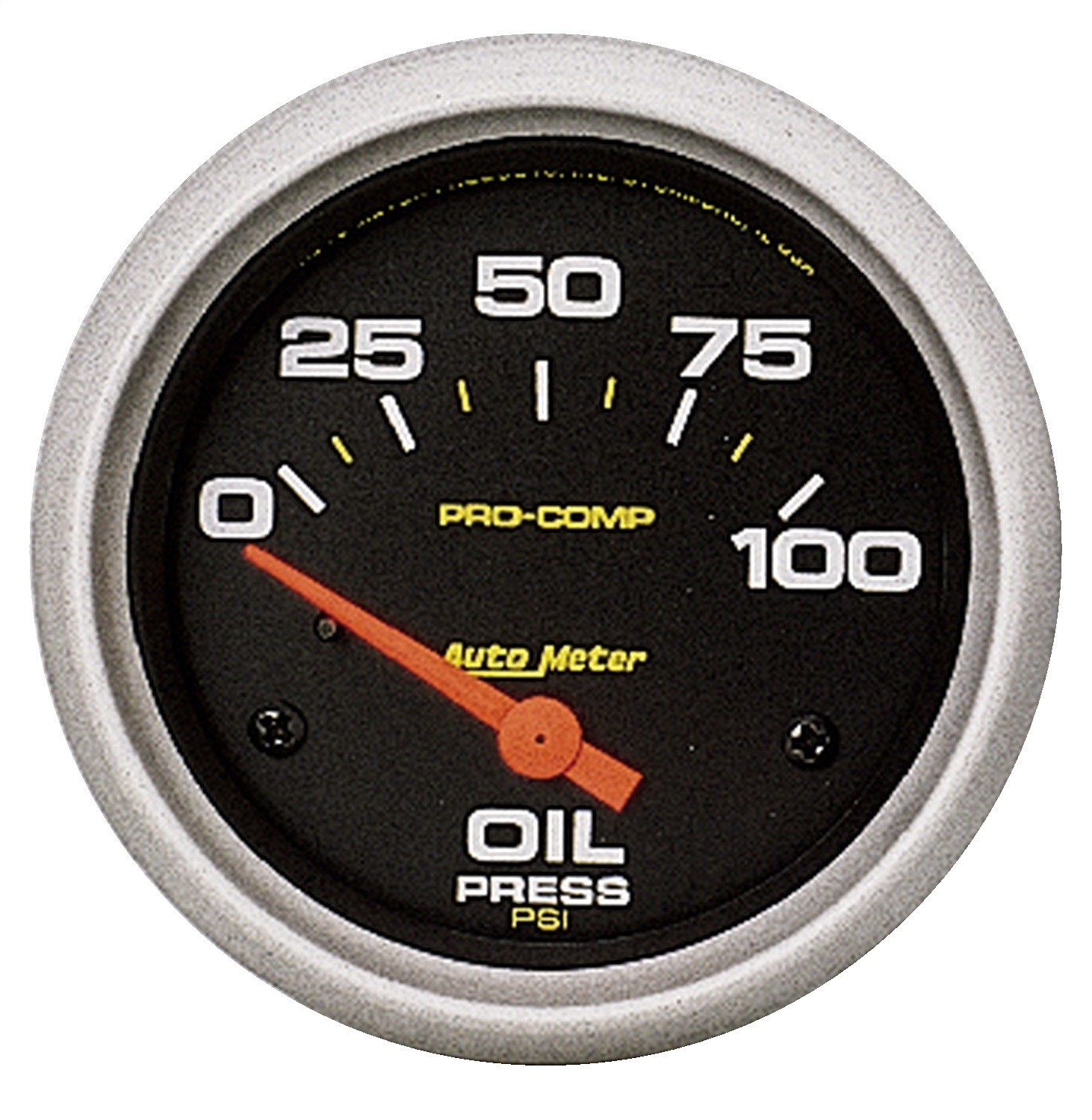

AutoMeter 5427 2-5/8″ OIL PRESSURE, 0-100 PSI, PRO-COMP
$162.05
2-5/8" OIL PRESSURE 0-100 PSI PRO-COMP
1 in stock
Description
Quite possibly the most critical vital to monitor engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments this meter movement has been the engine powering the machine that sets the benchmark. A single wire 1/8” NPT oil pressure sender is included.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT pressure sender 1/4” NPT adapter bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Brand | AutoMeter |
| Part Number | 5427 |
| Part Type | Engine Oil Pressure Gauge |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Cross Sell | 2268 2269 2265 2266 2267 |
| Cup/Hole Size – Metric – MM | 66.7mm MM |
| Cup/Hole Size – Standard – IN | 2-5/8" IN |
| Dial Color | Black |
| Gauge Type | Oil Pressure |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 3245 |
| Includes Sensor Unit | 2242 |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-7/8" IN |
| Outer Bezel Diameter – Standard | 2-5/8" IN |
| Pointer Color | Fluorescent Red |
| Range | 0-100 PSI |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 1.22 lbs |
|---|---|
| Dimensions | 6.25 × 6 × 6.25 in |
| Brand | AutoMeter |
| Part Type | Engine Oil Pressure Gauge |
| Manufacturer Part Number | 5427 |
| Country of Origin | US |
| Warranty | 12 Months |
