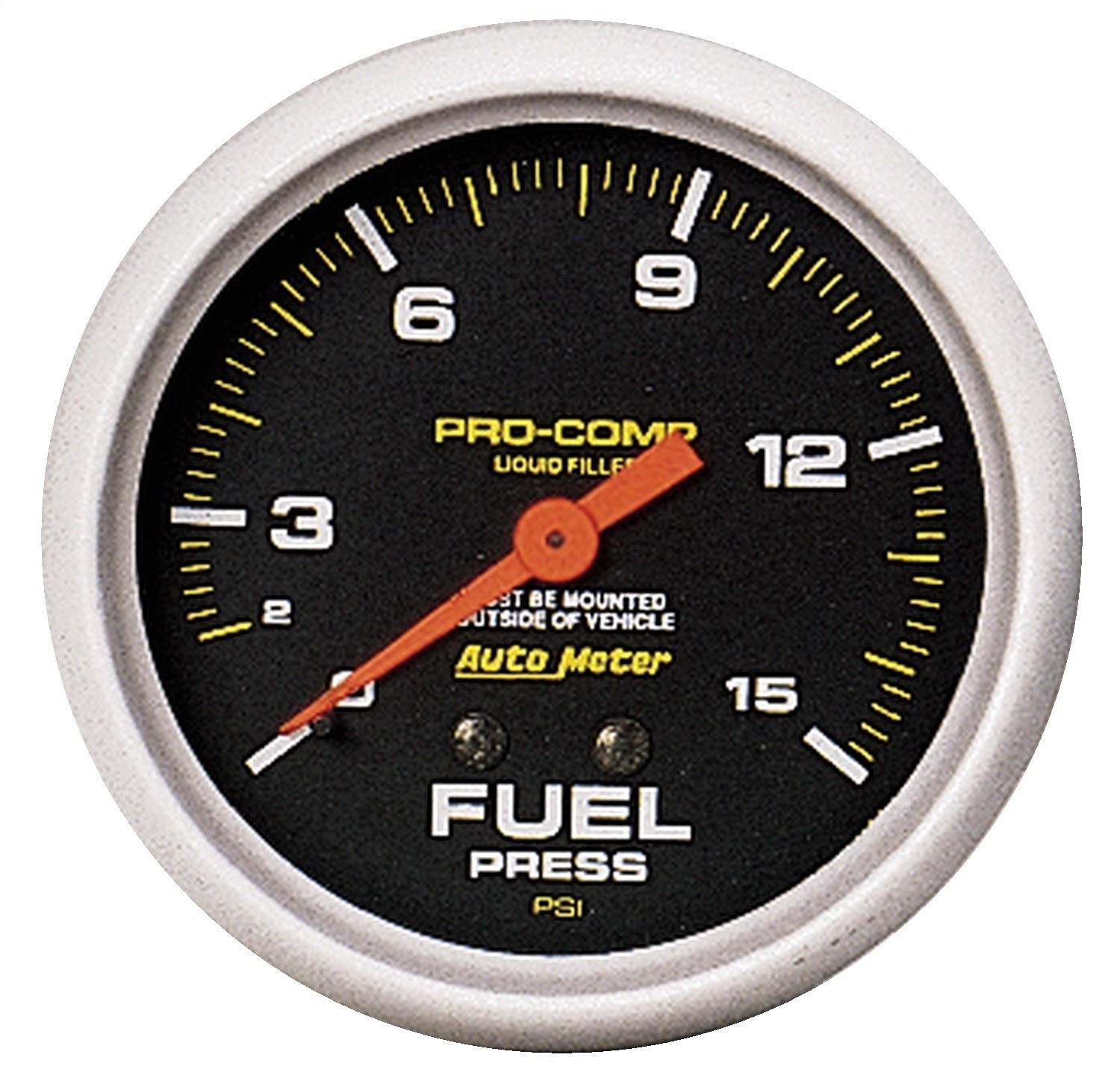

AutoMeter 5411 2-5/8″ FUEL PRESSURE, 0-15 PSI, LIQUID FILLED, PRO-COMP
$198.01
2-5/8" FUEL PRESSURE 0-15 PSI LIQUID FILLED PRO-COMP
2 in stock
Description
Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter’s Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for fuel injected or carbureted applications a simple -4an connection makes installation easy. Don’t take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock vibration and the elements.
- Gauge kit includes bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
- Gauge threaded for -4AN allowing an easy installation into the fuel system
- No electrical system required for gauge operation – compatible with every street or race vehicle
Specifications
| Brand | AutoMeter |
| Part Number | 5411 |
| Part Type | Fuel Pressure Gauge |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Cross Sell | 3227 3228 3229 3288 3286 3284 |
| Cup/Hole Size – Metric – MM | 66.7mm MM |
| Cup/Hole Size – Standard – IN | 2-5/8" IN |
| Dial Color | Black |
| Gauge Type | Fuel Pressure |
| Includes Bulb & Socket | 3211 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 3245 |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-7/8" IN |
| Outer Bezel Diameter – Standard | 2-5/8" IN |
| Pointer Color | Fluorescent Red |
| Range | 0-15 PSI |
| Related Item | 2163 BEX-5000 EP-800 0424XL |
| Series | PRO-COMP |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 1.03 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Fuel Pressure Gauge |
| Manufacturer Part Number | 5411 |
| Country of Origin | US |
| Warranty | 12 Months |
