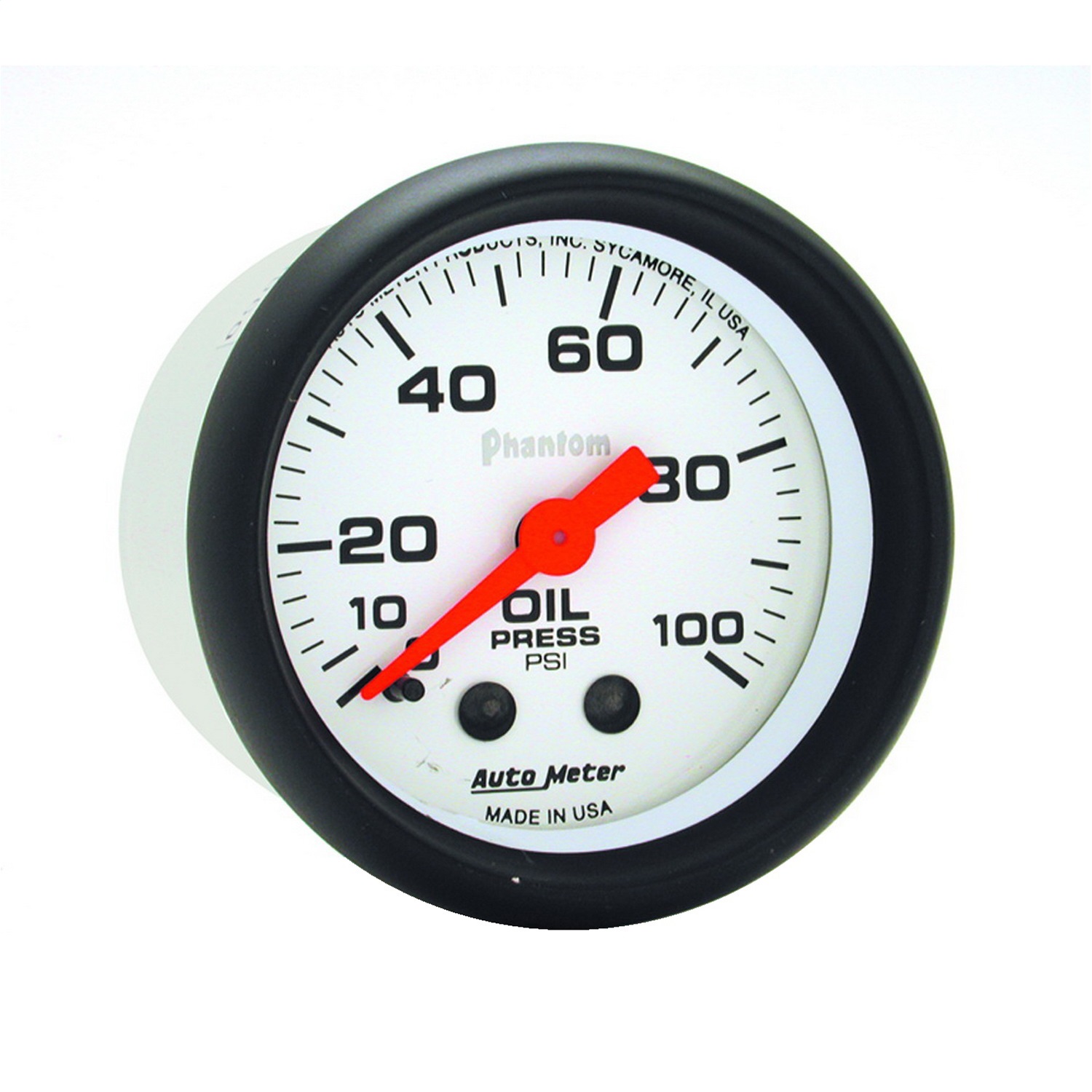

AutoMeter 5721 2-1/16″ OIL PRESSURE, 0-100 PSI, PHANTOM
$120.48
2-1/16" OIL PRESSURE 0-100 PSI PHANTOM
1 in stock
Description
The life blood of your engine a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance as well as your peace of mind. AutoMeter’s Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. A simple 1/8” NPT connection makes installation easy. Fittings and nylon tube are included and optional braided stainless line kits are available.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation – compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line 1/8” NPT compression fittings 1/4” NPT adapter bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
Specifications
| Brand | AutoMeter |
| Part Number | 5721 |
| Part Type | Engine Oil Pressure Gauge |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Cross Sell | 3224 3227 3228 3229 3226 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | White |
| Gauge Type | Oil Pressure |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting 1/8" NPT Female to 1/8" compression fitting 1/8" NPT to 1/4" NPT bushing |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 2230 |
| Includes Tubing | 10 ft. nylon tubing |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Fluorescent Red |
| Range | 0-100 PSI |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Engine Oil Pressure Gauge |
| Manufacturer Part Number | 5721 |
| Country of Origin | US |
| Warranty | 12 Months |
