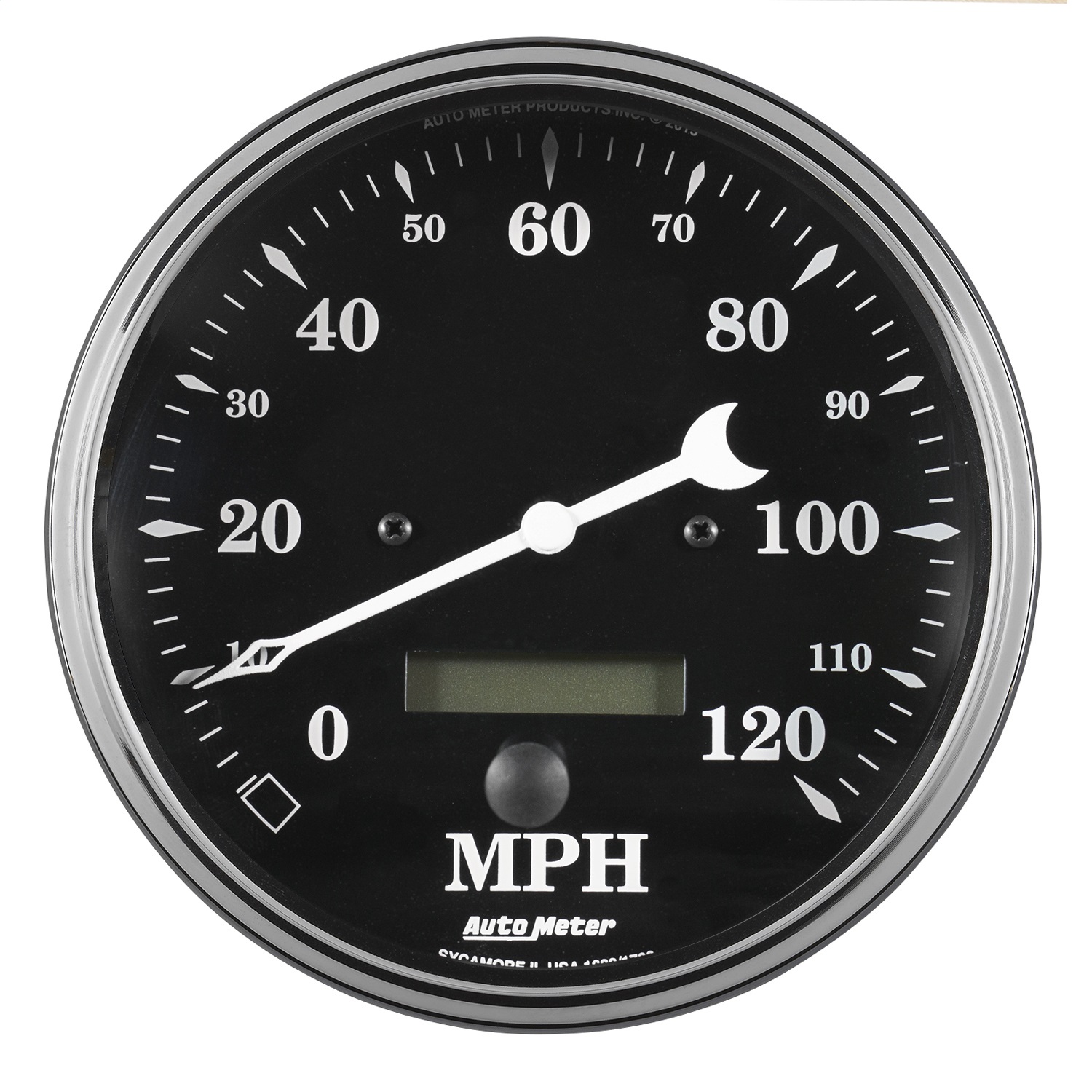

AutoMeter 1789 5″ SPEEDOMETER, 0-120 MPH, ELEC. PROG. W/ LCD ODO, OLD TYME BLACK
$493.05
5" SPEEDOMETER 0-120 MPH ELEC. PROG. W/ LCD ODO OLD TYME BLACK
1 in stock
Description
AutoMeter’s Electronic Programmable Speedometer provides an easy-to-install and easy-to-calibrate solution that will help keep your speed exactly where it needs to be. These accurate and responsive speedometers are compatible with most factory and aftermarket speed senders and you’ll wonder why you ever struggled with a speedometer before. Calibration is as simple as a two mile drive or for even easier operation AutoMeter’s GPS Speedometer Sender is a simple solution for any AutoMeter Programmable Speedometer.
Features
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Simple push button 2 mile drive calibration. No dip switches!
- Reprogram at any time to accommodate changes in gear ratio or wheel and tire combination.
- Gauge kit includes bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
Specifications
| Brand | AutoMeter |
| Part Number | 1789 |
| Part Type | Speedometer Gauge |
| Bezel Color | Chrome |
| Bezel Style | Street Rod |
| Cross Sell | 5291 5292 5289 5290 3299 |
| Cup/Hole Size – Metric – MM | 117.5mm MM |
| Cup/Hole Size – Standard – IN | 4-5/8" IN |
| Dial Color | Black |
| Gauge Type | Speedometer |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | Bracket Included |
| Lens Style | Domed Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 4-15/16" IN |
| Outer Bezel Diameter – Standard | 4-5/8" IN |
| Pointer Color | White |
| Range | 0-120 MPH |
| Related Item | 2160 BEX-1500 EP-800 0423XL |
| Series | OLD TYME BLACK |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.85 lbs |
|---|---|
| Dimensions | 6.25 × 6.25 × 5.25 in |
| Brand | AutoMeter |
| Part Type | Speedometer Gauge |
| Manufacturer Part Number | 1789 |
| Country of Origin | US |
| Warranty | 12 Months |
