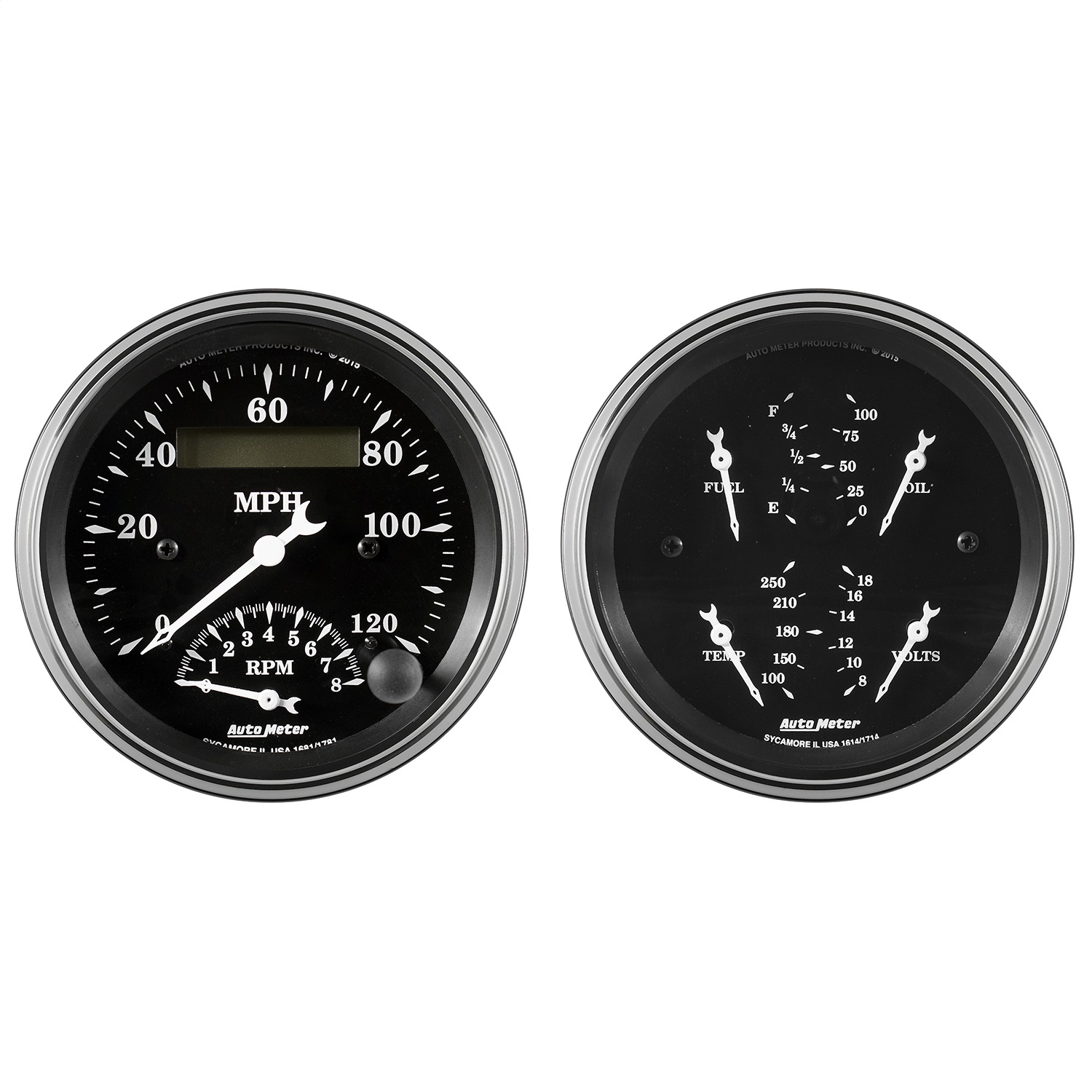

AutoMeter 1720 Gauge Set – 3-3/8 QUAD SPEEDO

Description

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Features

• Highly polished chrome bezel
• Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F) oil pressure sender water temperature sender 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" – 18THD)
• Sending unit adapters (1/4" 3/8” and 1/2" NPT adapters) bulb and socket assemblies red and green bulb covers mounting hardware and detailed instructions for installation.
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• 12 and 16 volt compatible compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Tachometer is compatible with 0.5 – 6 pulse ignition signals (1-12 cylinder engines) with points electronic and most 12V high-performance racing ignitions.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.

Specifications

Installation Instructions (PDF)
