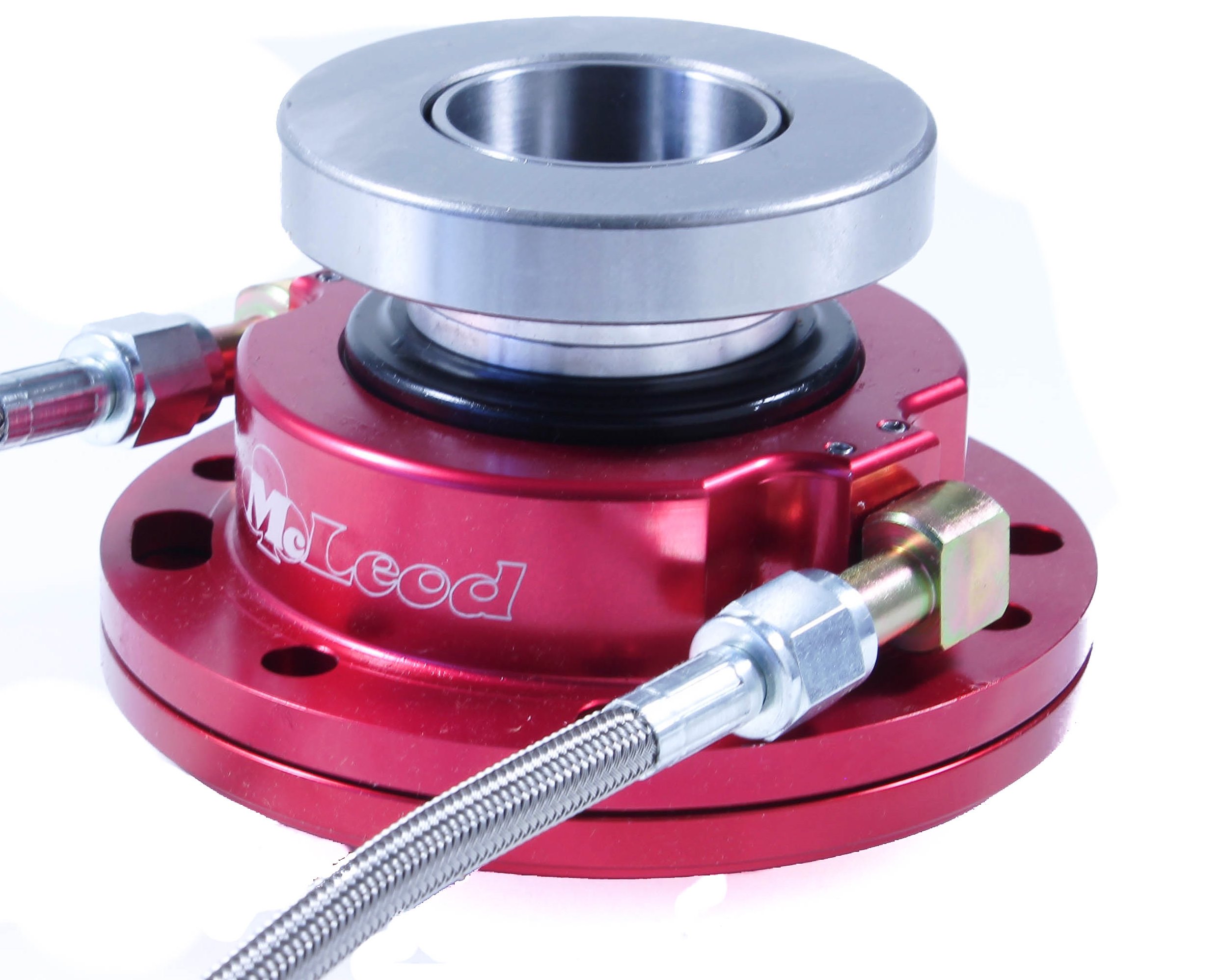

McLeod 1300 Series Hydraulic Throwout Bearings
$499.70
1300 Series Hydraulic Bearing: GM: Borg Warner: T-5: "A" Dimension: 2.50"-2.99": 4.680" Register
1 in stock
Description
Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Features
- • Hard Anodized Billet Aluminum.
• Stainless Steel Lines.
• Bleeder.
• Slip on.
• Self-adjusting.
Specifications
| Brand | McLeod |
| Part Number | 1302 |
| Part Type | Clutch Release Bearing |
| "A" Dimension | 2.50 in. to 2.99 in. |
| Bearing Face I.D. (in.) | 1.590 IN |
| Bearing Face O.D. (in.) | 3.000 IN |
| Height 1 Spacer | 2.590In. |
| Height 2 Spacers | 2.740 |
| Height 3 Spacers | 2.890In. |
| Note | This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764 |
| Note 2 | This bearing will NOT work with counter weighted diaphragm pressure plates. |
| Quantity | Sold individually. |
| Spline | 1 1/8In. x 26 |
| Stock Collar I.D. (in.) | 4.680In. |
| Transmission | GM T-5 5 Speed |
Vehicle Fitment
1984-1990 Chevrolet S10 Blazer; 1984-1995 Chevrolet S10; 1985-1989 Chevrolet Astro; 1985-1992 Chevrolet Camaro; 1986-1986 Chevrolet K10; 1986-1990 Chevrolet G10; 1986-1990 Chevrolet G20; 1986-1990 Chevrolet G30; 1987-1987 Chevrolet R10; 1987-1987 Chevrolet V10; 1987-1987 Chevrolet V20; 1987-1988 Chevrolet R20; 1987-1990 Chevrolet Blazer; 1988-1990 Chevrolet C1500; 1988-1990 Chevrolet C3500; 1988-1990 Chevrolet K1500; 1988-1990 Chevrolet K3500; 1988-1992 Chevrolet C2500; 1988-1992 Chevrolet K2500; 1989-1989 Chevrolet R2500
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 13.25 × 5.5 × 3.25 in |
| Brand | McLeod |
| Part Type | Clutch Release Bearing |
| Manufacturer Part Number | 1302 |
| Country of Origin | US |
| Warranty | 90 Days |
