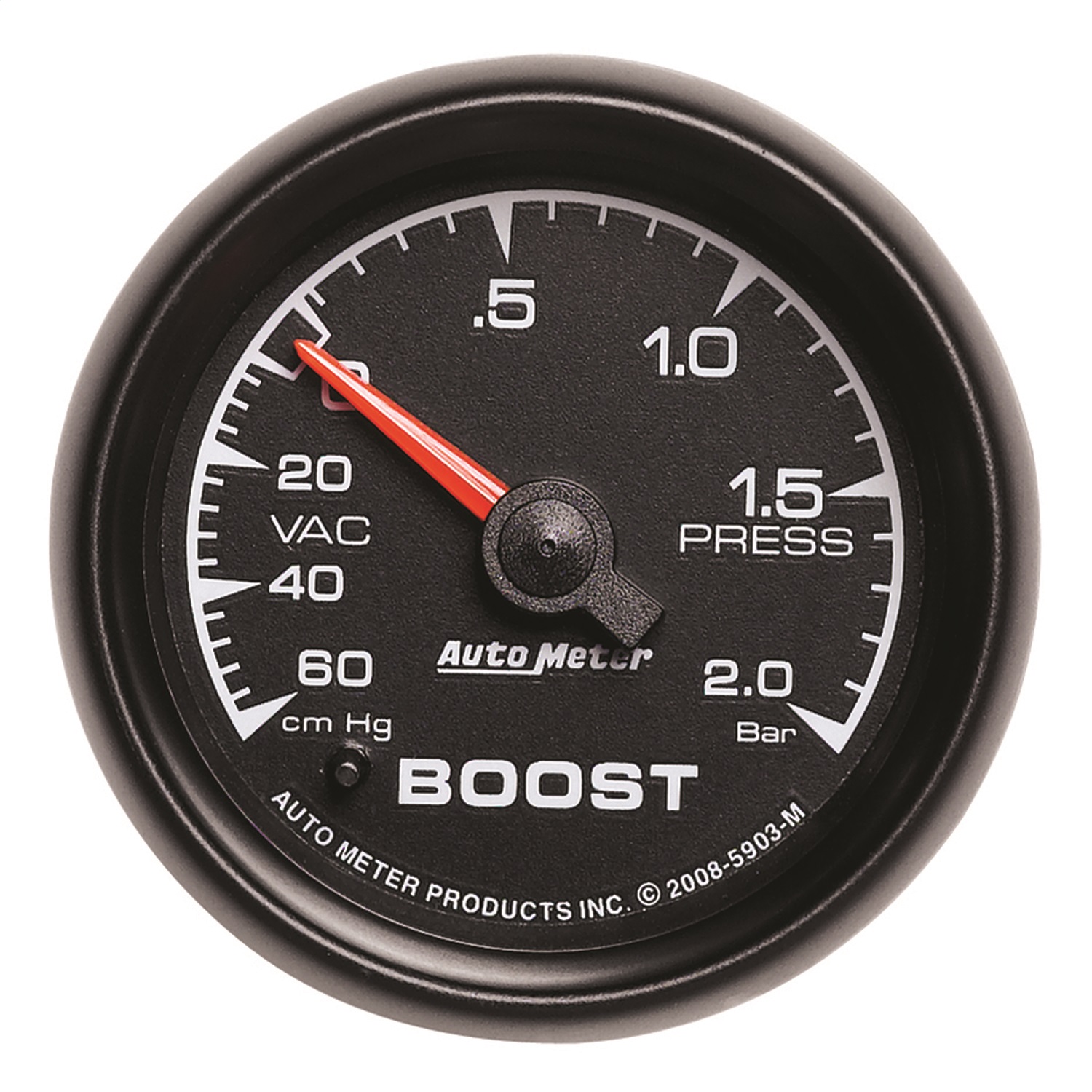

AutoMeter 5903-M 2-1/16″ BOOST/VACUUM, 60 CM/HG-2.0 BAR, ES
$145.29
2-1/16" BOOST/VACUUM 60 CM/HG-2.0 BAR ES
1 in stock
Description
The standard in the industry AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented high precision bourdon tube meter movement there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Features
- Modern red LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation – compatible with every street or race vehicle
- Gauge kit includes 1/8” nylon line T-Fitting vacuum fitting compression fittings mounting hardware and detailed instructions for installation
- Mechanical movements provide accuracy and durability even in the harshest environments
Specifications
| Brand | AutoMeter |
| Part Number | 5903-M |
| Part Type | Boost Gauge |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Cross Sell | 3224 3227 3228 3229 3226 5978 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Black |
| Gauge Type | Boost/Vacuum |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting 1/8" NPT Female to 1/8" compression fitting 1/8" NPT to 1/4" NPT bushing T – Fitting |
| Includes Mounting Hardware | 2230 |
| Includes Tubing | 10 ft. nylon tubing |
| Lens Style | Flat Clear |
| Lighting Color | Red |
| Lighting Type | LED |
| Movement | Mechanical |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Fluorescent Red |
| Range | 60 CM/HG-2.0 BARS |
| Related Item | EP-800 |
| Series | ES |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Boost Gauge |
| Manufacturer Part Number | 5903-M |
| Country of Origin | US |
| Warranty | 12 Months |
