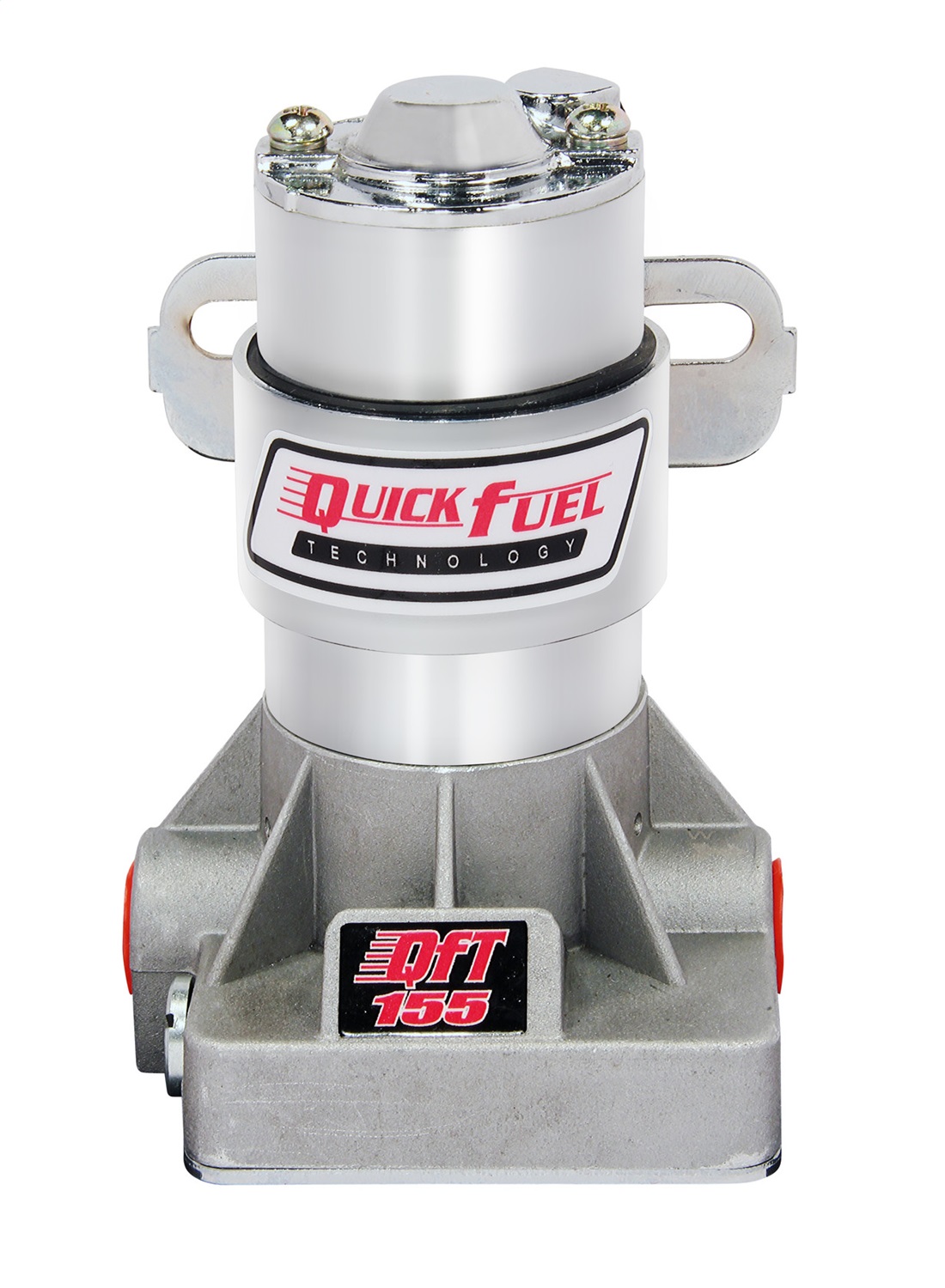

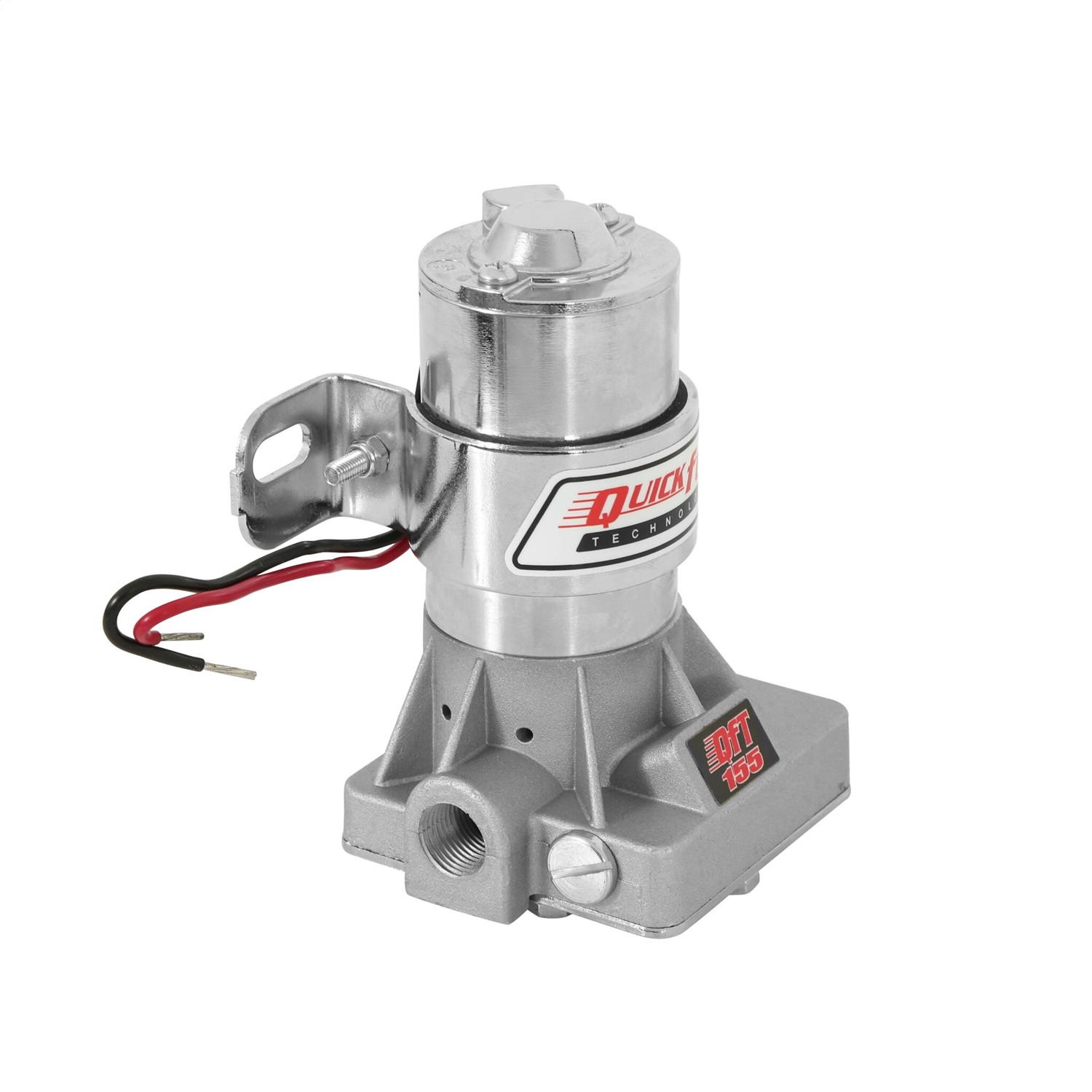

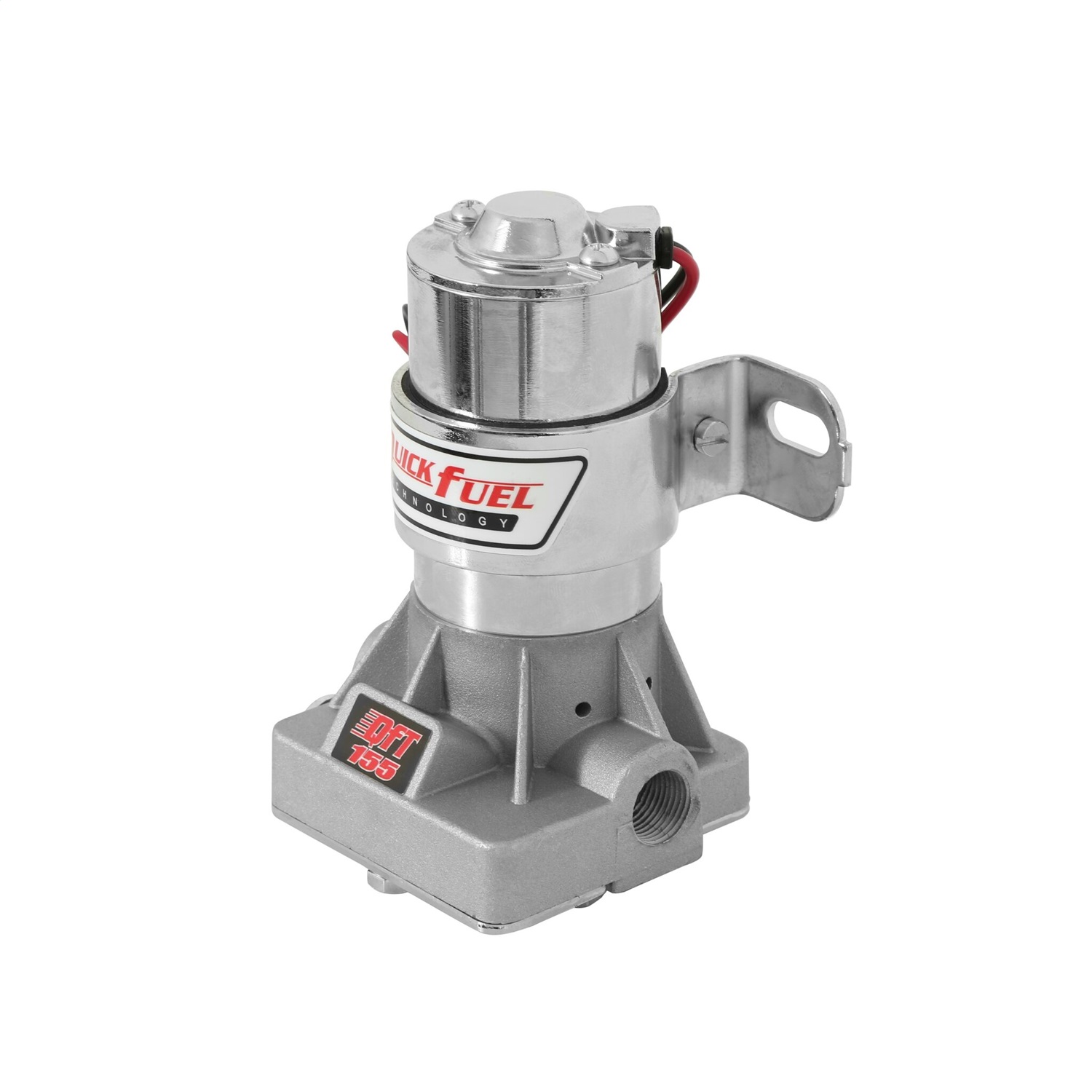

Electric Fuel Pump

Description

QFTs electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure ( 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included. 155 GPH electric fuel pump Designed for street & drag race applications Supports up to 600 HP engines Constructed of lightweight steel and aluminum 14 PSI maximum pressure Features 3/8 in. NPT inlet and outlet ports Externally accessible pressure relief valve Draws 4 Amps or less at full load Recommend external bypass regulator (30-900 or 30-1900)for long duration use Recommend 30-803 for non-bypass short duration use Assigned U.S. Patent numbers D645,055, D645,057, and D645,058 Mounting bracket, hardware, and detailed instructions included

Electric Fuel Pump; 155 GPH Flow Rate; 14 psi. Max Pressure; 3/8 NPT Inlet And Outlet; Carbureted Applications;
