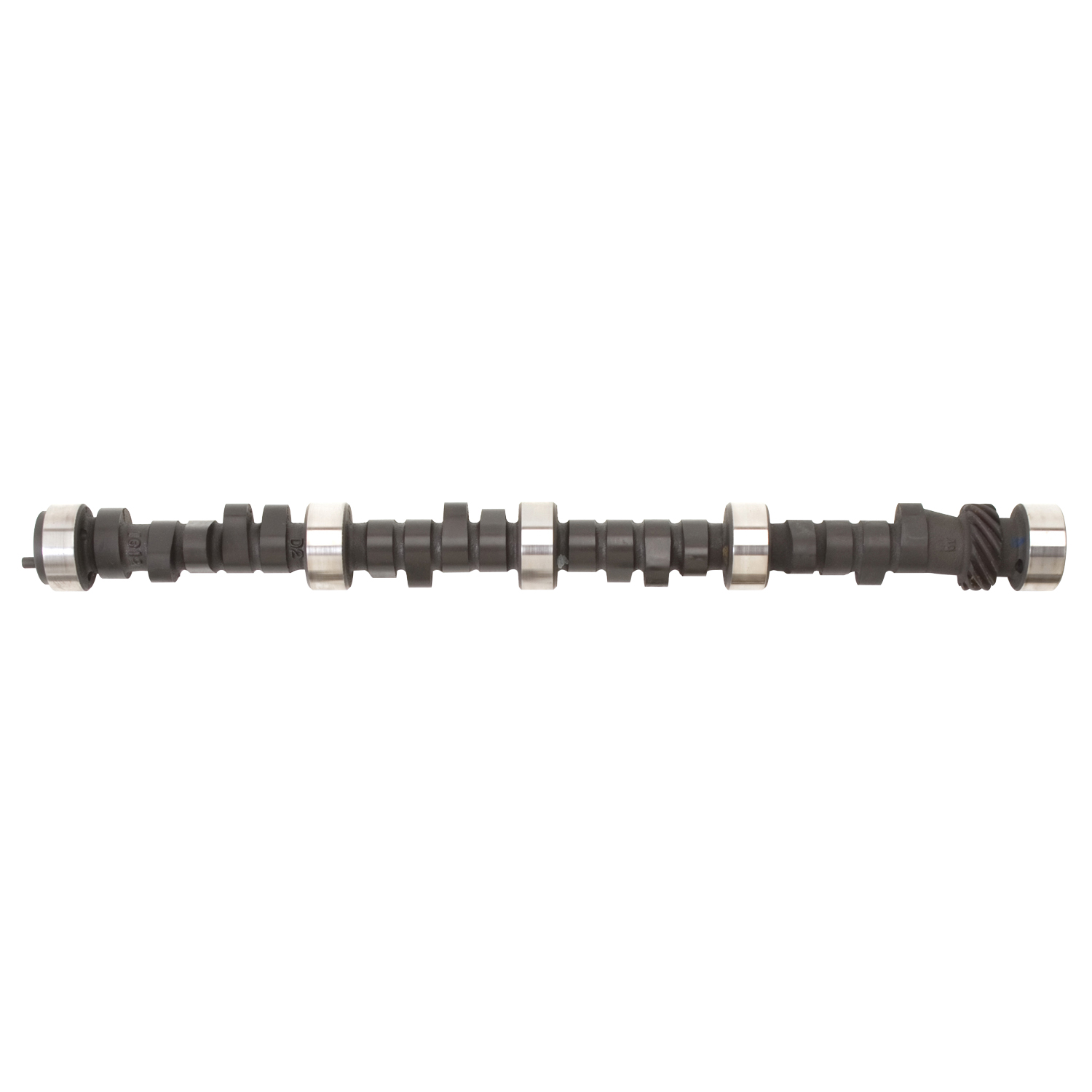

Edelbrock 2204 Engine Camshaft

Description

Edelbrock Rollin' Thunder Camshaft #2204 is designed for 283-400 Chevy V8 engines from 1987-Later (Non LT1/Gen III) and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers trucks vans RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters) assembly lube and instructions. This cam produced 435HP and 435 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516 Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60795. Use with high stall torque converter and stock ratio rocker arms only. Camshaft specifications: – Intake duration: 234 Degrees – Exhaust duration: 238 Degrees – Intake lift: .539" – Exhaust lift: .548" – Lobe separation: 112 Degree – Intake Center Line: 107 Degree – Vacuum: 12"

Features

• Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered manufactured and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
• Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered manufactured and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.

Specifications

Vehicle Fitment

1987-1987 Chevrolet R10; 1987-1987 Chevrolet V10; 1987-1987 Chevrolet V20; 1987-1987 GMC R1500; 1987-1987 GMC V1500; 1987-1987 GMC V2500; 1987-1987 Pontiac Grand Prix; 1987-1988 Chevrolet Monte Carlo; 1987-1988 Chevrolet R10 Suburban; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1987-1988 Chevrolet R30; 1987-1988 Chevrolet V10 Suburban; 1987-1988 Chevrolet V20 Suburban; 1987-1988 Chevrolet V30; 1987-1989 GMC R2500; 1987-1991 Chevrolet Corvette; 1987-1991 GMC Jimmy; 1987-1991 GMC R1500 Suburban; 1987-1991 GMC R2500 Suburban; 1987-1991 GMC R3500; 1987-1991 GMC V1500 Suburban; 1987-1991 GMC V2500 Suburban; 1987-1991 GMC V3500; 1987-1992 Chevrolet Camaro; 1987-1992 Pontiac Firebird; 1987-1993 Chevrolet Caprice; 1987-1994 Chevrolet Blazer; 1987-1995 Chevrolet G10; 1987-1995 Chevrolet G20; 1987-1995 GMC G1500; 1987-1995 GMC G2500; 1987-1996 Chevrolet G30; 1987-1996 GMC G3500; 1988-1995 Chevrolet C1500; 1988-1995 Chevrolet C2500; 1988-1995 Chevrolet C3500; 1988-1995 Chevrolet K1500; 1988-1995 Chevrolet K2500; 1988-1995 Chevrolet K3500; 1988-1995 GMC C1500; 1988-1995 GMC C2500; 1988-1995 GMC C3500; 1988-1995 GMC K1500; 1988-1995 GMC K2500; 1988-1995 GMC K3500; 1989-1991 Chevrolet R1500 Suburban; 1989-1991 Chevrolet R2500 Suburban; 1989-1991 Chevrolet R3500; 1989-1991 Chevrolet V1500 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1989-1991 Chevrolet V3500; 1990-1992 Cadillac Brougham; 1991-1992 Oldsmobile Custom Cruiser; 1991-1993 Buick Commercial Chassis; and more – see compatibility chart

Installation Instructions (PDF)
