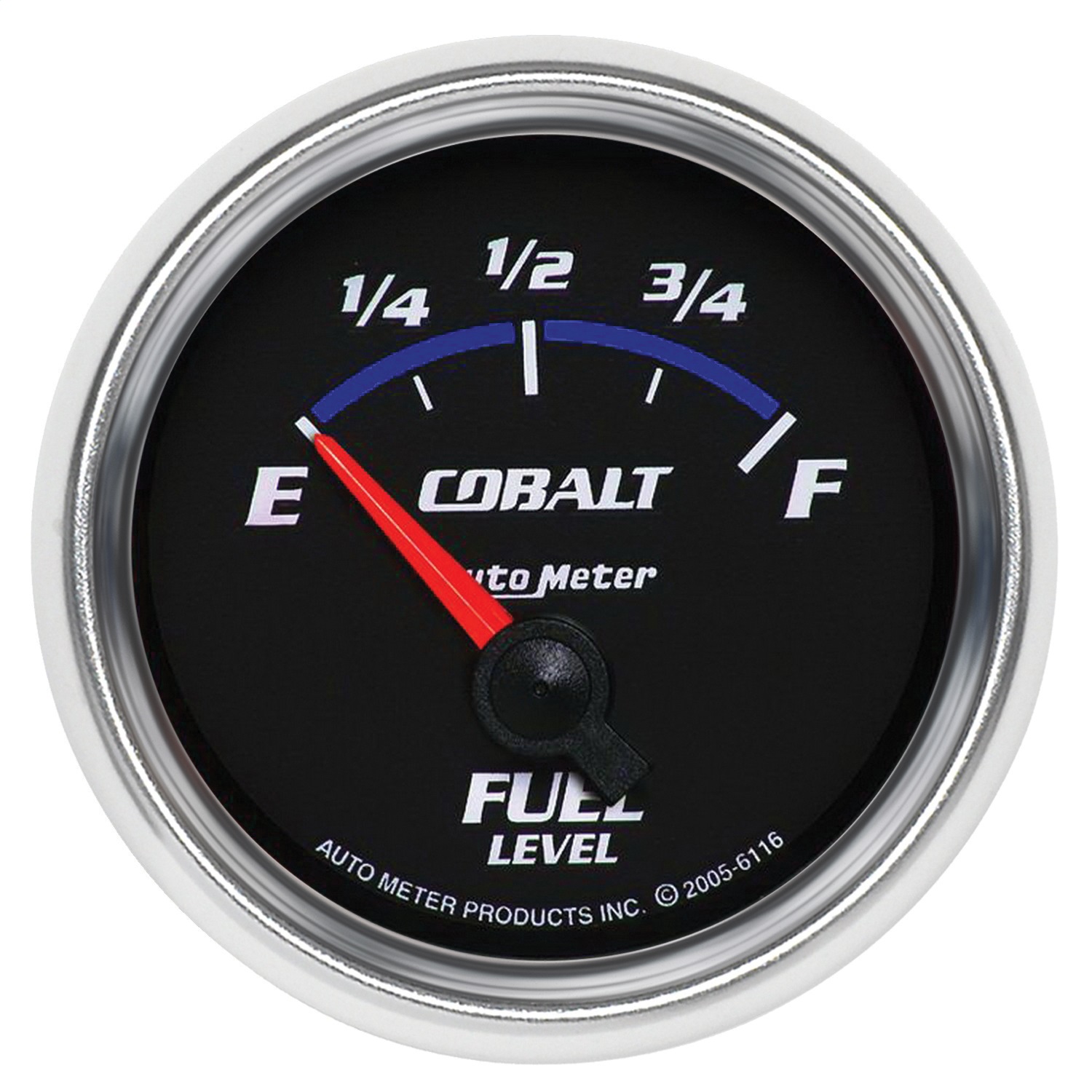

AutoMeter 6116 2-1/16″ FUEL LEVEL, 240-33 O, SSE, COBALT
$143.22
2-1/16" FUEL LEVEL 240-33 Ohm SSE COBALT
2 in stock
Description
One of the most necessary gauges in a dashboard AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s) 0-30 ohm (early GM) 73-10 ohm (pre 90’s Ford and Chrysler) 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Features
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Works with 240E/33F ohm senders including AutoMeter 3262
- 12 and 16 volt compatible well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
| Brand | AutoMeter |
| Part Number | 6116 |
| Part Type | Fuel Level Gauge |
| Bezel Color | Bright Anodized |
| Bezel Style | Super Bezel |
| Cross Sell | 3262 3263 9114 6137 6127 6192 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Black |
| Gauge Type | Fuel Level |
| Includes Mounting Hardware | 2230 |
| Lens Style | Flat Clear |
| Lighting Color | Blue |
| Lighting Type | LED |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Fluorescent Red |
| Range | 240 O Empty / 33 O Full |
| Related Item | 2160 BEX-3000 EP-800 |
| Series | COBALT |
| Size – Metric – MM | 52.4mm MM |
| Size – Standard – IN | 2-1/16" IN |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Fuel Level Gauge |
| Manufacturer Part Number | 6116 |
| Country of Origin | US |
| Warranty | 12 Months |
