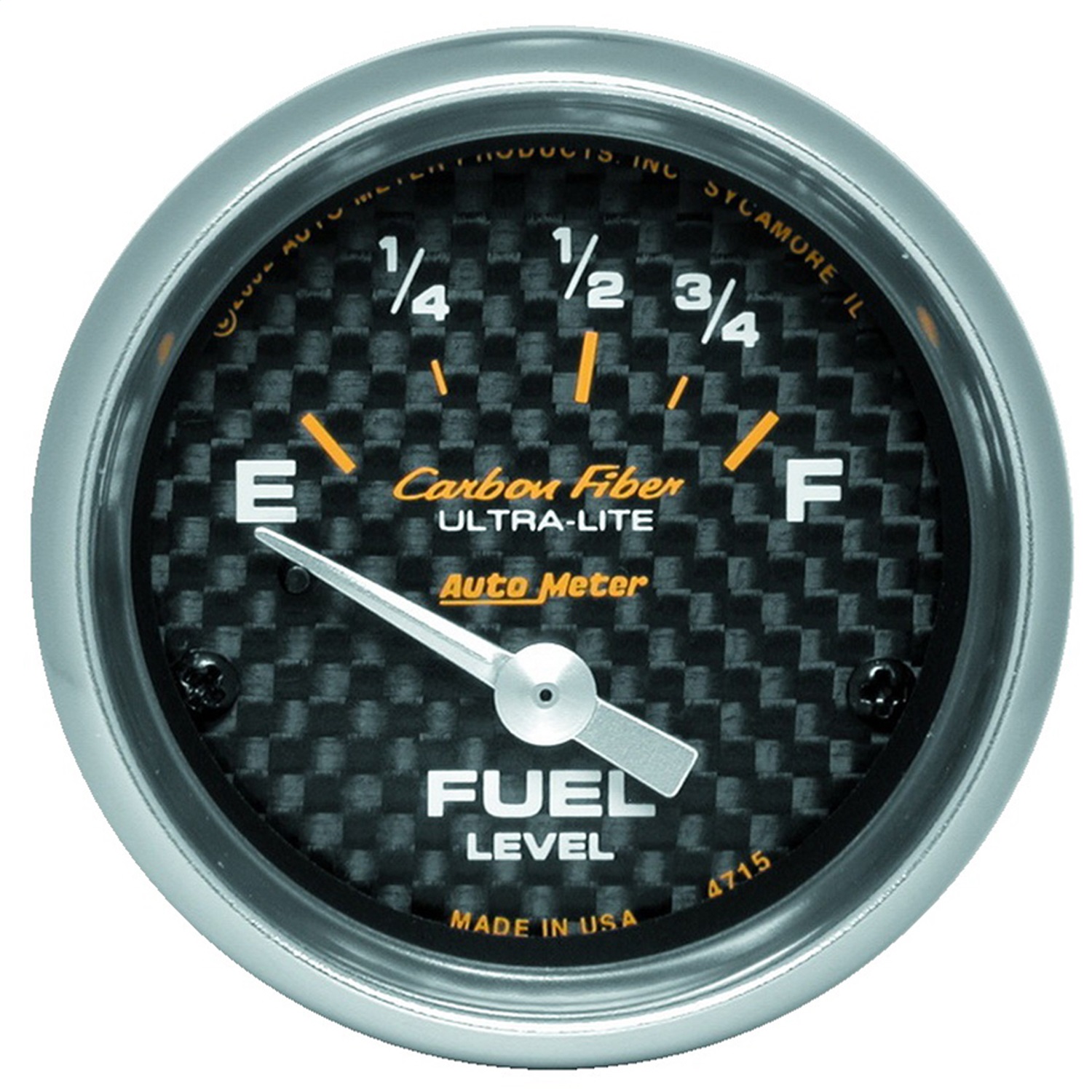

AutoMeter 4715 2-1/16″ FUEL LEVEL, 73-10 O, CARBON FIBER
$121.86
2-1/16" FUEL LEVEL 73-10 Ohm CARBON FIBER
1 in stock
Description
One of the most necessary gauges in a dashboard AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s) 0-30 ohm (early GM) 73-10 ohm (pre 90’s Ford and Chrysler) 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- 12 and 16 volt compatible well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly red and green bulb covers mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
| Brand | AutoMeter |
| Part Number | 4715 |
| Part Type | Fuel Level Gauge |
| Bezel Color | Bright Anodized |
| Bezel Style | Super Bezel |
| Cross Sell | 3298 3288 3286 3285 3284 2236 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Carbon Fiber |
| Gauge Type | Fuel Level |
| Includes Bulb & Socket | 3220 |
| Includes Light Covers | Red 3214 & Green 3215 |
| Includes Mounting Hardware | 2230 |
| Lens Style | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Silver |
| Range | 73 O Empty / 10 O Full (NON-LINEAR) |
| Related Item | 2160 BEX-3000 EP-800 0424XL |
| Series | CARBON FIBER |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Fuel Level Gauge |
| Manufacturer Part Number | 4715 |
| Country of Origin | US |
| Warranty | 12 Months |
