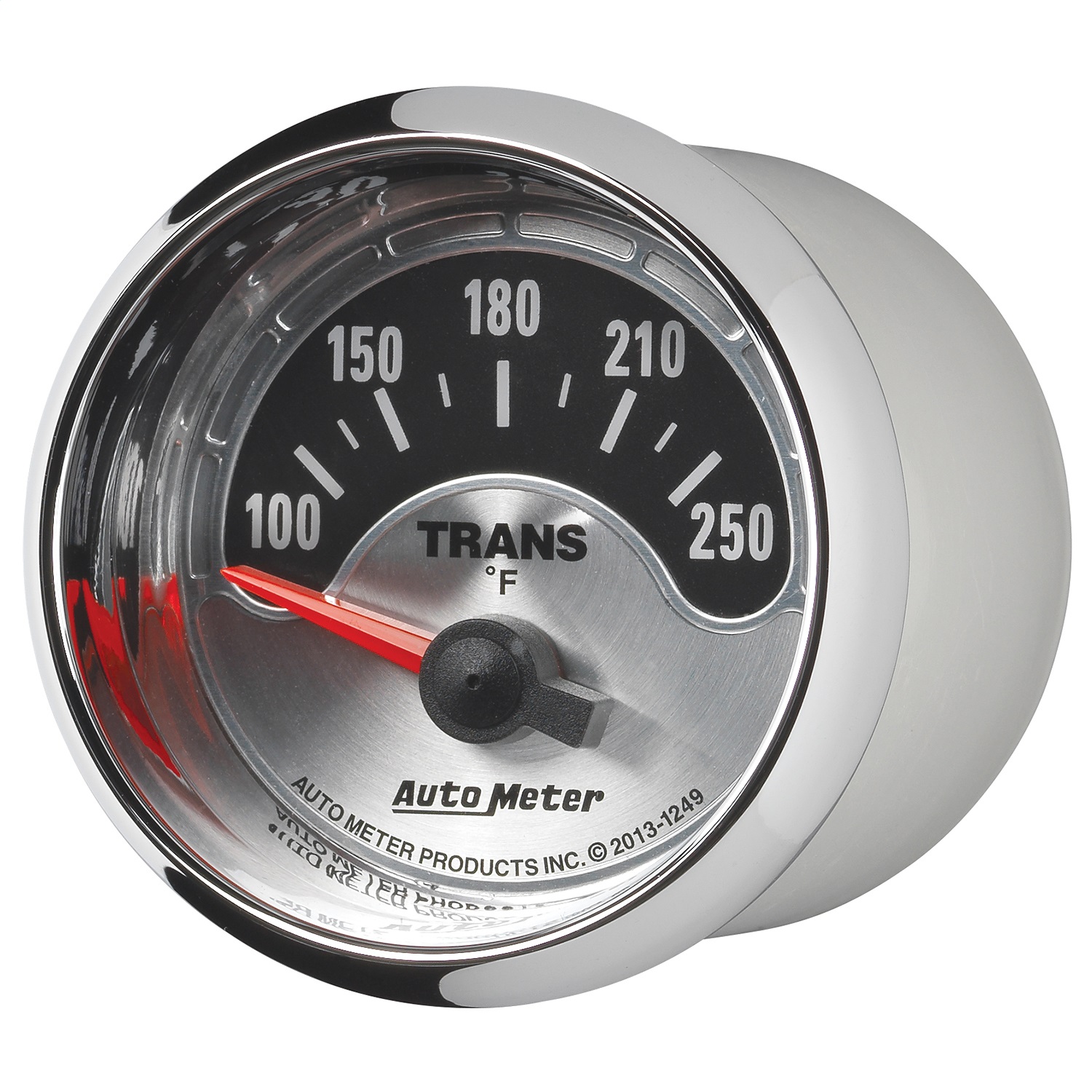

AutoMeter 1249 2-1/16″ TRANSMISSION TEMPERATURE, 100-250 °F, AMERICAN MUSCLE
$172.57
2-1/16" TRANSMISSION TEMPERATURE 100-250 F AMERICAN MUSCLE
1 in stock
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Features
- Highly polished chrome bezel

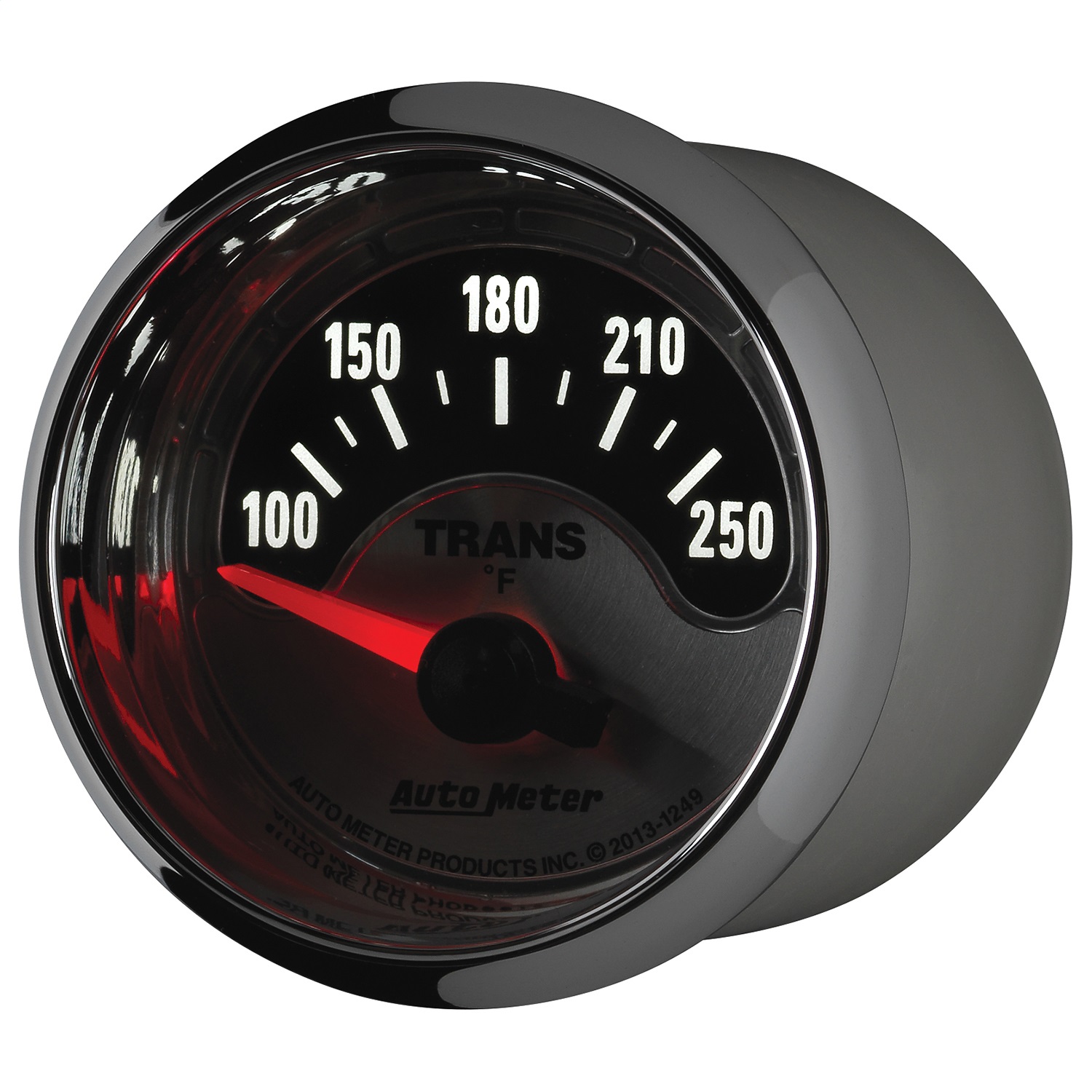

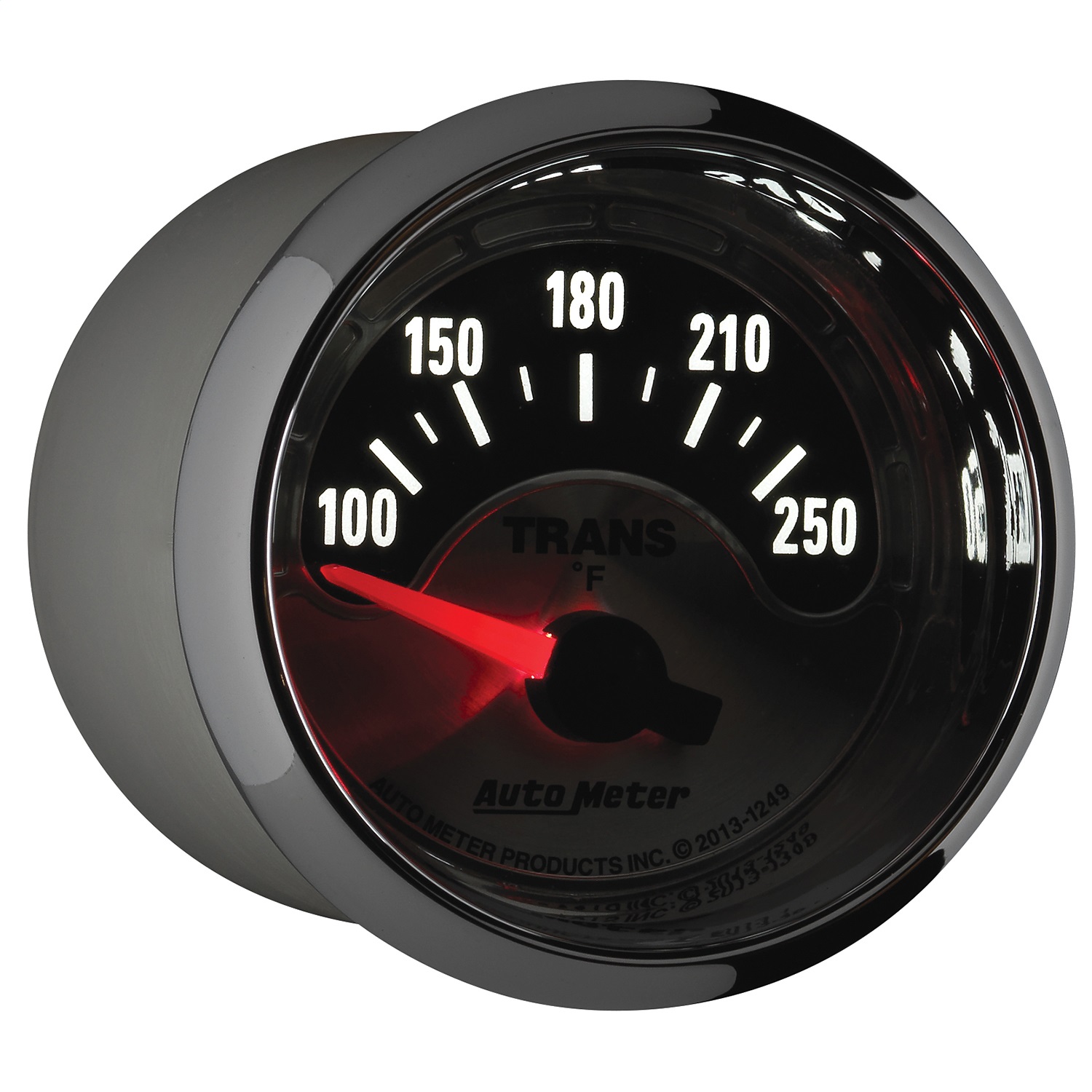

- Features Hi-Def™ through-the-dial white LED lighting
- Includes 1/8" NPT Sender and 3/8" NPT and 1/2" NPT adapter/fittings
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Specifications
| Brand | AutoMeter |
| Part Number | 1249 |
| Part Type | Automatic Transmission Oil Temperature Gauge |
| Bezel Color | Chrome |
| Bezel Style | Super Bezel |
| Cross Sell | 2286 2287 3298 2259 9114 2260 |
| Cup/Hole Size – Metric – MM | 52.4mm MM |
| Cup/Hole Size – Standard – IN | 2-1/16" IN |
| Dial Color | Silver |
| Gauge Type | Transmission Temperature |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Lens Style | Flat Clear |
| Lighting Color | White |
| Lighting Type | LED |
| Movement | Electric Air-Core |
| Outer Bezel Diameter | 2-1/4" IN |
| Outer Bezel Diameter – Standard | 2-1/16" IN |
| Pointer Color | Fluorescent Red |
| Range | 100-250 °F |
| Related Item | 2160 BEX-3000 EP-800 0423XL |
| Series | AMERICAN MUSCLE |
Installation Instructions (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 4.75 × 4.5 × 4.5 in |
| Brand | AutoMeter |
| Part Type | Automatic Transmission Oil Temperature Gauge |
| Manufacturer Part Number | 1249 |
| Country of Origin | US |
| Warranty | 12 Months |
